Simplicity 7114

The Simplicity 7114 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: 4 forward and reverse.

Overview

	1979 - 1986 7100 SeriesGarden tractor 7100 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
914	similar Deutz-Allis model

Simplicity 7114 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	50.7 inches 128 cm
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual 7100 Series (1679625) published in 1986
Lawn & Garden Equipment published in 1979, by Simplicity
Riding Mowers and Garden Tractors published in 1982, by Simplicity

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler K321
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission options
hydrostatic
4-speed gear

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Transmission — 4 forward and reverse belt-driven gear

Type	belt-driven gear
Gears	4 forward and reverse
Four-speed transmission with shuttle shift and variator.

Dimensions

Simplicity 7114 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	50.7 inches 128 cm
Length	70 inches 177 cm
Width	36.9 inches 93 cm
Height (steering wheel)	39.7 inches 100 cm
Height (hood)	35.7 inches 90 cm
Clearance (front axle)	8 inches 20 cm
Front tread	30 inches 76 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

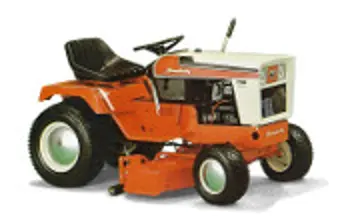

Simplicity 7114 tractor photo
