Simplicity Broadmoor 14H

The Simplicity Broadmoor 14H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Hydro-Gear. Operating weight: 115 lbs 52 kg.

Overview

	1994 - 1999 Model year 1994-19971997-1999 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $3,150 in 1994

Variants
2614H	similar Massey Ferguson model
1614H	similar AGCO model

Simplicity Broadmoor 14H Engine
14HP Kohler 398cc 1-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Broadmoor 14H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	540 lbs 244 kg
Front tire	15x6.00-6
Rear tire	20x8.00-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual Broadmoor Series (1709979) published in 1994
Tractors & Riding Mowers published in 1994, by Simplicity
Tractors & Riding Mowers published in 1995, by Simplicity
Tractors & Riding Mowers published in 1996, by Simplicity
1994 Price List published in 1993, by Simplicity
1996 Dealer Prduct Guide published by Simplicity

Engine

Engine Detail — 398 cc / 24.3 ci Gasoline

Manufacturer	Kohler CV14S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	398 cc 24.3 ci
Bore/Stroke	3.43x2.64 inches 87 x 67 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 14H Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x8.00-8

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	35 inches 88 cm
Height (steering wheel)	40 inches 101 cm
Weight	540 lbs*Weight with mower deck. 244 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Simplicity 1691704
	2-blade with manual lift
Cutting width	38 inches 96 cm
Weight	115 lbs 52 kg
Overall width	49.5 inches 125 cm
Cut height	1 to 3.6 inch 2 to 9 cm

Photos

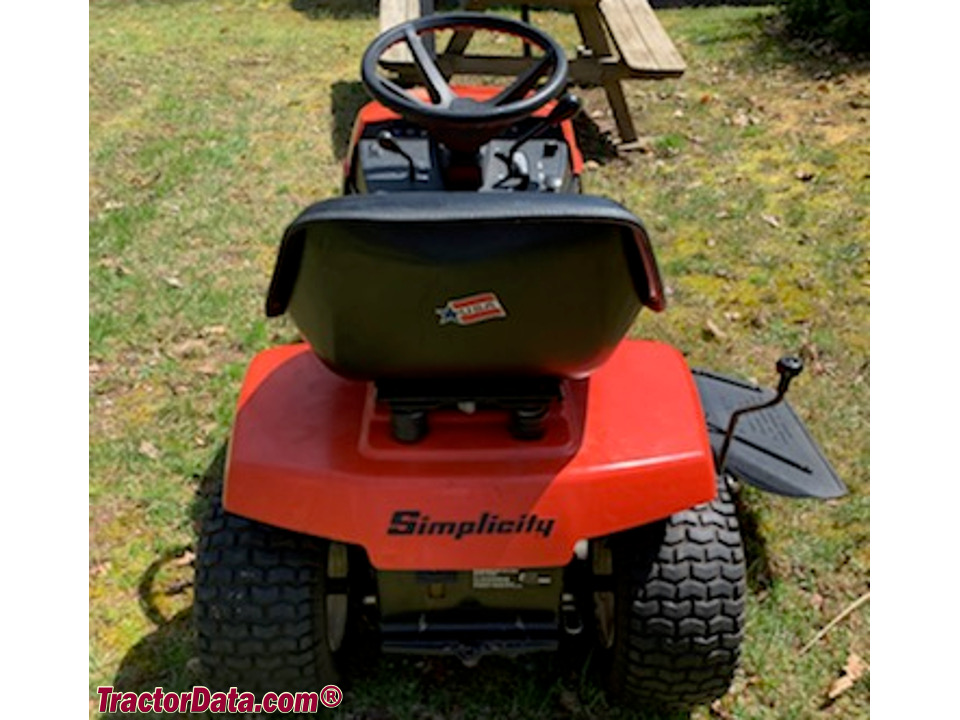

Simplicity Broadmoor 14H

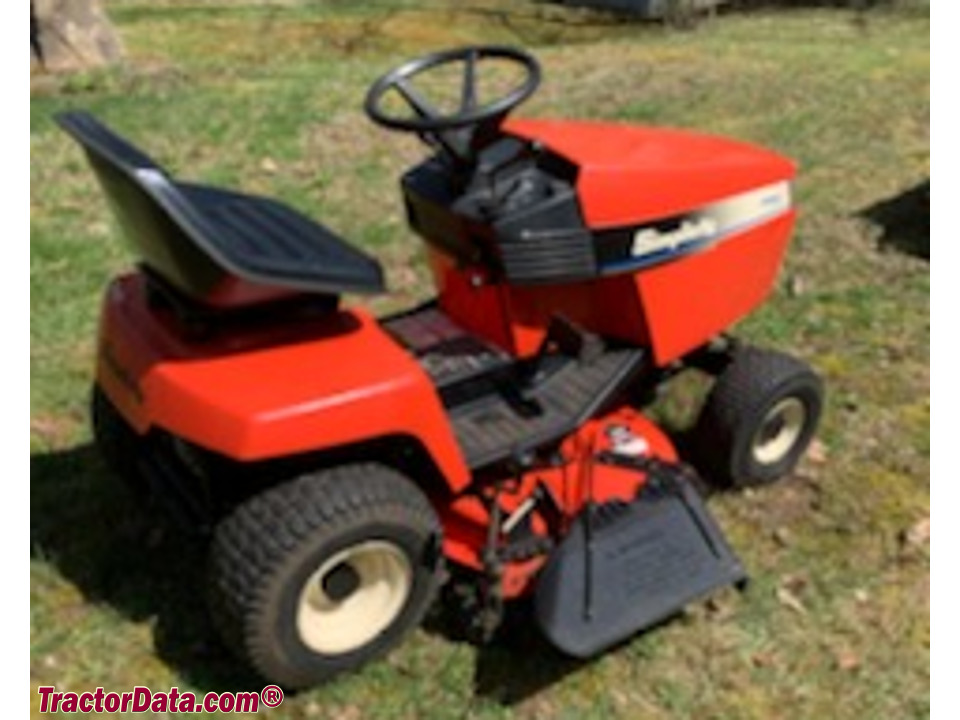

Simplicity Broadmoor 14H

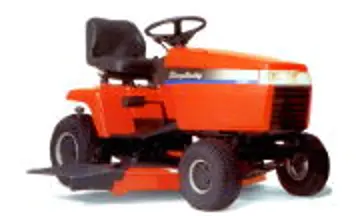

Simplicity Broadmoor 14H

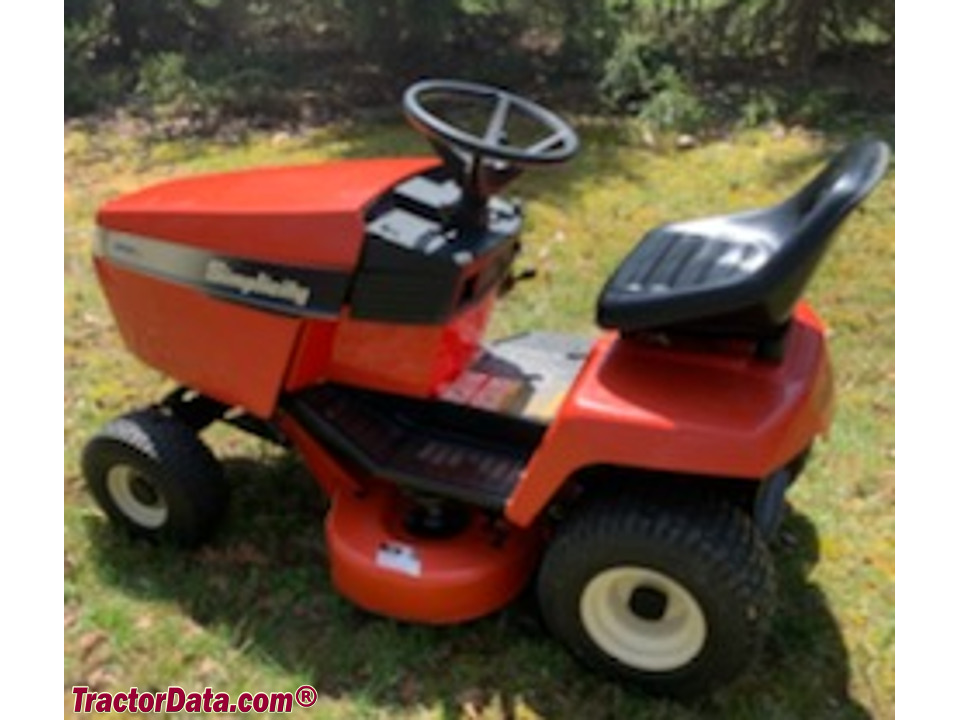

Simplicity Broadmoor 14H
