Simplicity Broadmoor 14HV
The Simplicity Broadmoor 14HV is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Hydro-Gear. Operating weight: 540 lbs 244 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Hydro-Gear
Operating Weight
540 lbs
244 kg
Overview
 | 1995 - 1997
Broadmoor SeriesLawn tractor
Broadmoor Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price | $3,675 (1996 ) |
$3,825 (1997 ) | |
Variants | |
|---|---|
1614VH | similar AGCO model |
Simplicity Broadmoor 14HV Engine | |
|---|---|
14HP Vanguard 480cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity Broadmoor 14HV Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 540 lbs
244 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Broadmoor Series (1709979) published in 1994 | |
Tractors & Riding Mowers published in 1995, by Simplicity | |
Tractors & Riding Mowers published in 1996, by Simplicity | |
1996 Dealer Prduct Guide published by Simplicity | |
1997 Spring Product Guide published in 1996, by Simplicity |
Engine
Engine Detail — 480 cc / 29.3 ci Gasoline
Manufacturer | Vanguard 294777 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear
Transmission | Hydro-Gear |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity Broadmoor 14HV Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x8.00-8 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 67 inches
170 cm |
Width | 35 inches
88 cm |
Height (steering wheel) | 40 inches
101 cm |
Weight | 540 lbs
244 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
38" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Overall width | 49.5 inches
125 cm |
Cut height | 1 to 3.6 inch
2 to 9 cm |
Photos

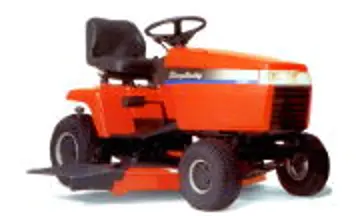

Simplicity Broadmoor 14HV, right side.

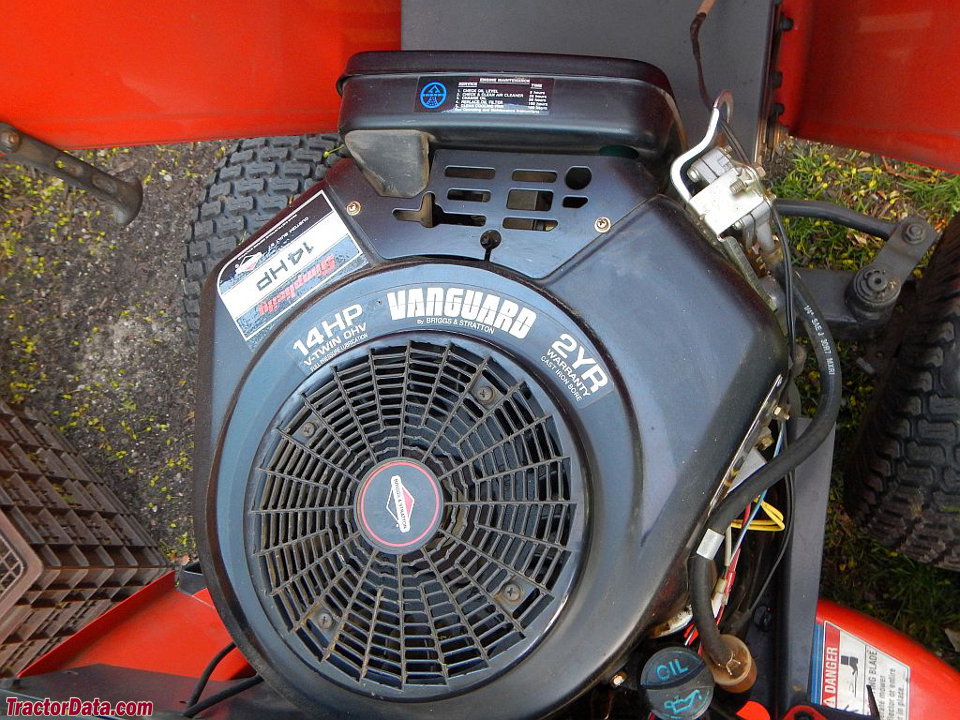

Briggs Vanguard engine in the Simplicity Broadmoor 14HV.

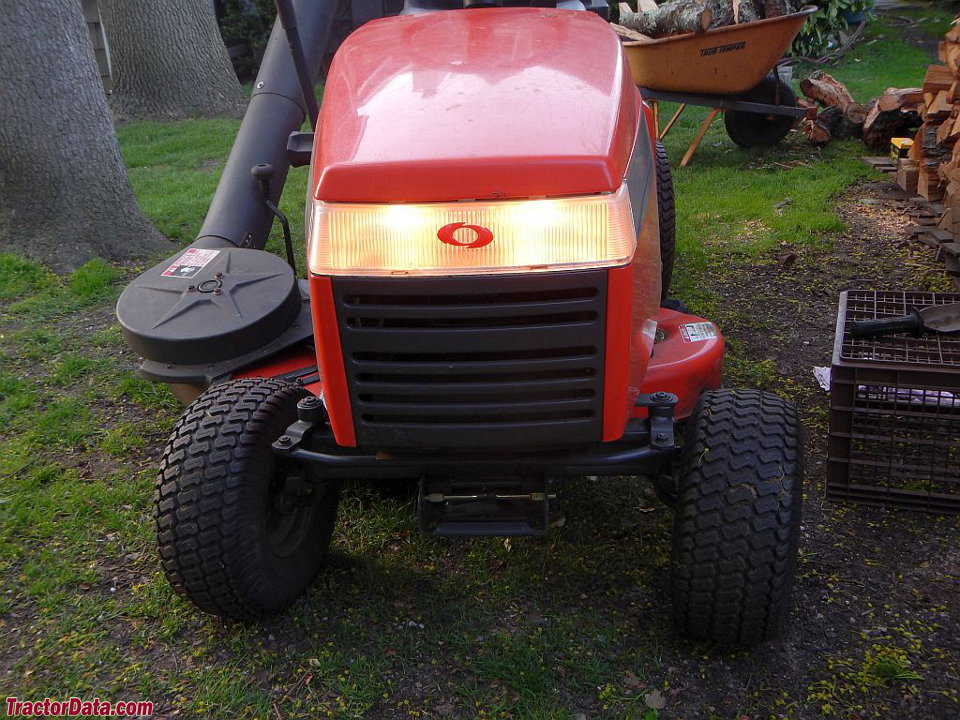

Front view of the Simplicity Broadmoor 14HV.

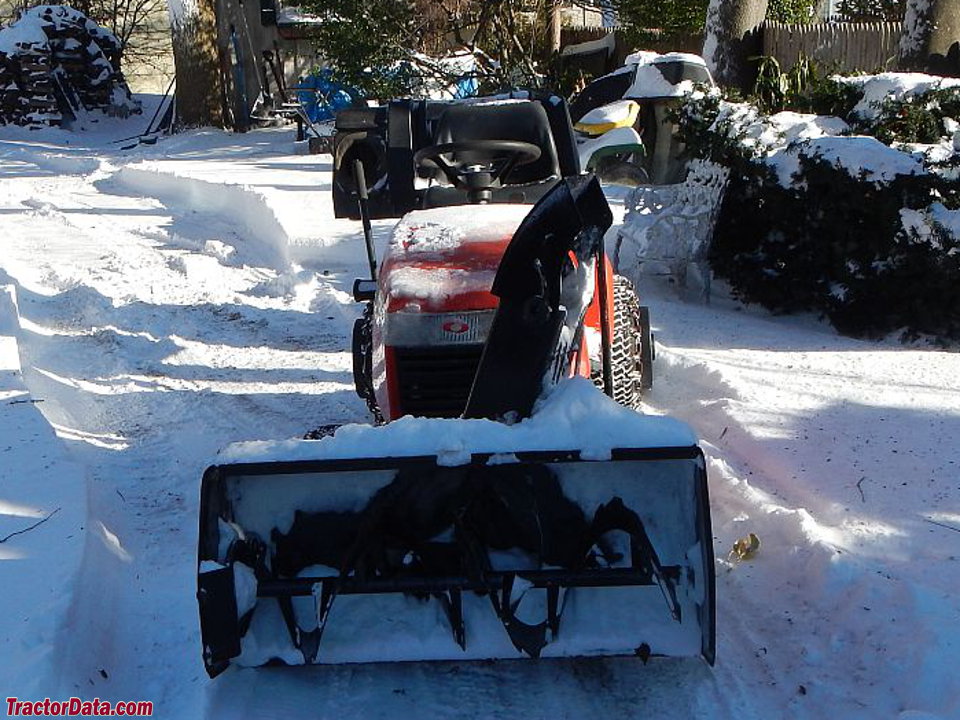

Simplicity Broadmoor 14HV with snowblower.

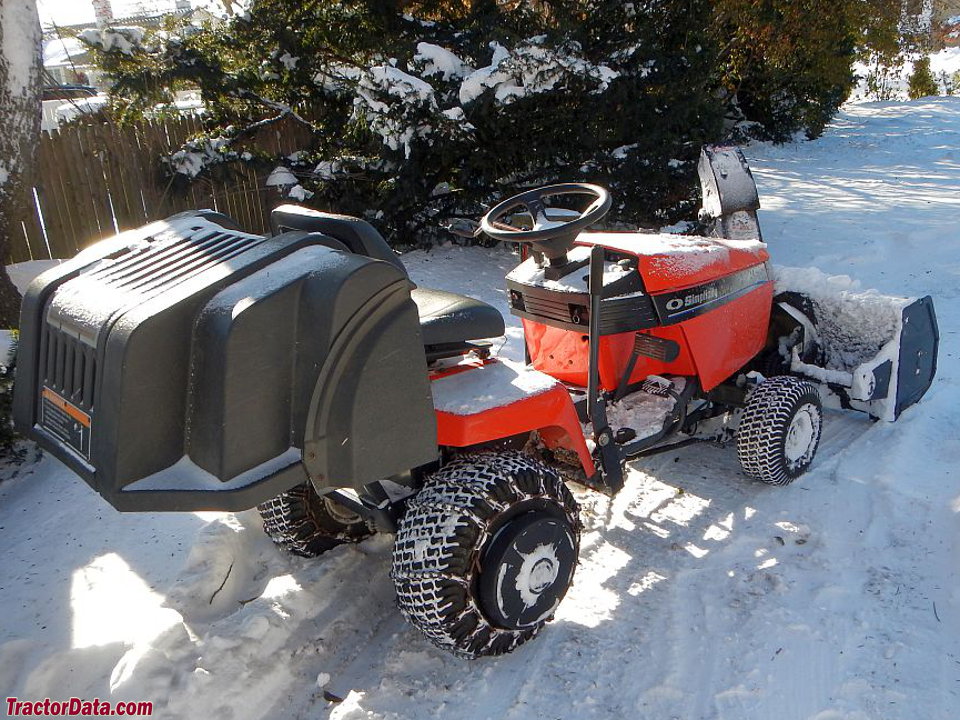

Simplicity Broadmoor 14HV with snowblower.

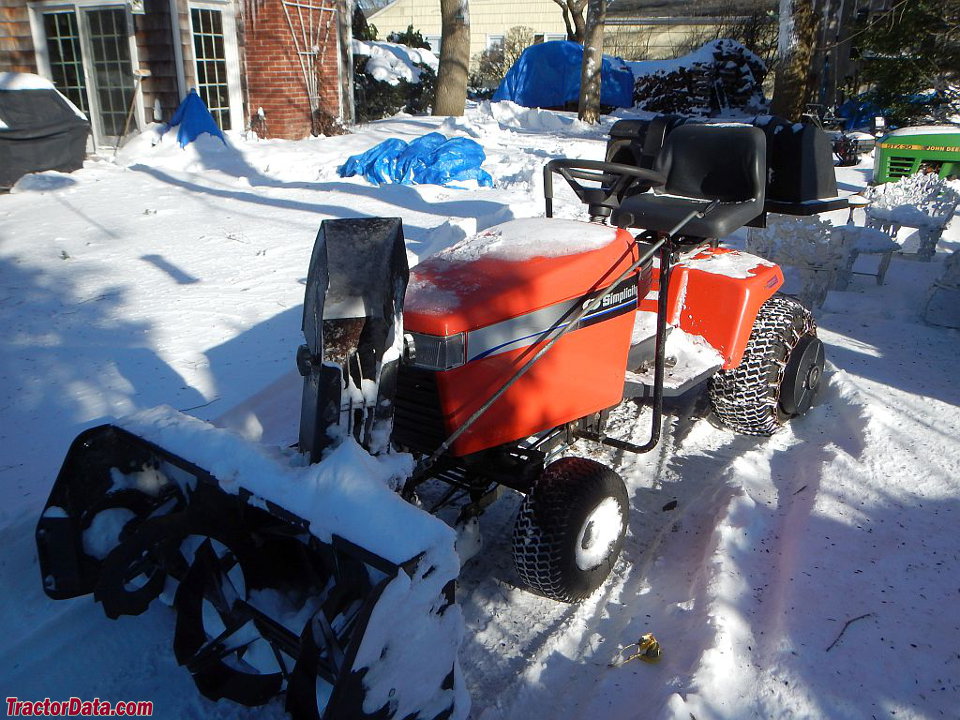

Simplicity Broadmoor 14HV with snowblower.

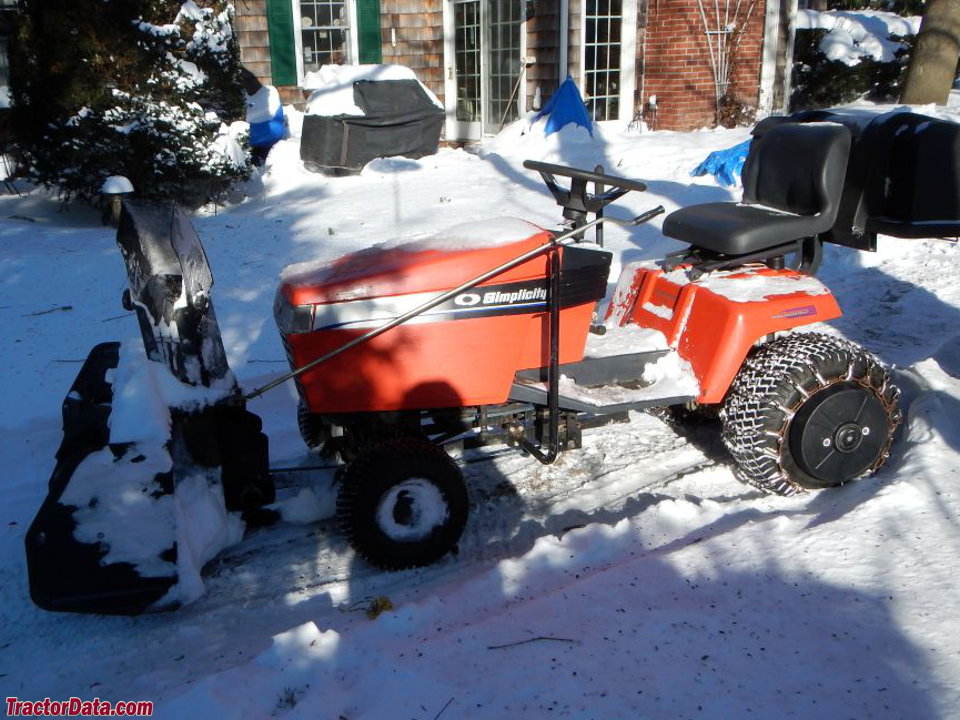

Simplicity Broadmoor 14HV with snowblower.
Simplicity Lawn Tractors Simplicity Broadmoor 14HV Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Broadmoor 14HV.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
