Simplicity Express 14.5G

The Simplicity Express 14.5G is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 14.5 hp / 10.8 kW. Transmission: Peerless MST 205. Operating weight: 81 lbs 36 kg.

Overview

	1999 - 2003 Express SeriesLawn tractor Express Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Original price was $1,699 in 2000

Simplicity Express 14.5G Engine
14.5HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Simplicity Express 14.5G Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Weight	455 lbs 206 kg
Front tire	15x6.0-6
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Product Guide Spring 1999 published by Simplicity
Product Guide 2000 published by Simplicity
Product Guide Fall 2001 published by Simplicity

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton Intek
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	14.5 hp 10.8 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — Peerless MST 205

Transmission	Peerless MST 205
Type	belt-driven gear
Gears	5 forward and 1 reverse
Oil change	sealed unit, owner service is not recommended

Dimensions

Simplicity Express 14.5G Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	18x8.5-8

Dimensions
Length	68 inches 172 cm
Width	36 inches 91 cm
Height (steering wheel)	41 inches 104 cm
Height (hood)	34 inches 86 cm
Weight	455 lbs 206 kg

Attachments

Attachment overview
38" mid-mount mower deck
Blade

38" Mower deck
Type	mid-mount Simplicity 1693464
	2-blade with manual lift
Cutting width	38 inches 96 cm
Weight	81 lbs 36 kg
Overall width	49.5 inches 125 cm
Cut height	1.5 to 3.9 inch 3 to 9 cm

Photos

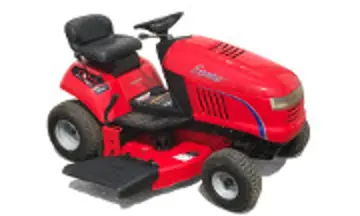

Simplicity Express 14.5G
