Simplicity Landlord 14

The Simplicity Landlord 14 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Tuff Torq K210-A. Operating weight: 115 lbs 52 kg.

Overview

	1992 - 1993 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $4,200 in 1993
The Simplicity Landlord 14 was also sold as the 14GTG.

Variants
1714	similar AGCO model

Simplicity Landlord 14 Engine
14HP Kohler 398cc 1-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Landlord 14 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	51.5 inches 130 cm
Weight	670 lbs 303 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	340
Battery volts	12

References
Outdoor Power Equipment published in 1992, by Simplicity
1993 Price List published in 1992, by Simplicity

Engine

Engine Detail — 398 cc / 24.3 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	398 cc 24.3 ci
Bore/Stroke	3.43x2.64 inches 87 x 67 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K210-A

Transmission	Tuff Torq K210-A
Type	belt-driven gear
Gears	6 forward and 1 reverse
Oil capacity	3.875 qts 3.7 L

Dimensions

Simplicity Landlord 14 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	51.5 inches 130 cm
Length	72 inches 182 cm
Width	39 inches 99 cm
Height (steering wheel)	42.5 inches 107 cm
Height (hood)	36 inches 91 cm
Shipping weight	670 lbs 303 kg

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

44" Mower deck
Type	mid-mount Simplicity 1692026
	3-blade
Cutting width	44 inches 111 cm
Weight	115 lbs 52 kg
Overall width	56 inches 142 cm
Cut height	1 to 3.6 inch 2 to 9 cm

Photos

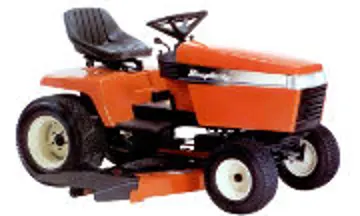

Simplicity Landlord 14 tractor photo
