simplicity lawn tractors legacy 23
 | 2001 - 2003
Legacy SeriesGarden tractor | 2001 - 2003 | Legacy Series | Garden tractor |
|---|---|---|---|---|
2001 - 2003 | ||||
Legacy Series | ||||
Garden tractor | ||||
2001 - 2003 | |
|---|---|
Legacy Series | |
Garden tractor |
Transmission | |||
|---|---|---|---|
Transmission | Sundstrand 15U | ||
Type | shaft-driven hydrostatic | ||
Gears | infinite forward and reverse (2-range) | ||
Oil capacity | 6 qts
5.7 L | ||
Oil type | ATF F | ATF F | |
ATF F | |||
Oil change | 400 h | ||
Sundstrand 15 hydrostatic with Peerless 2600 transaxle. | |||
ATF F |
|---|

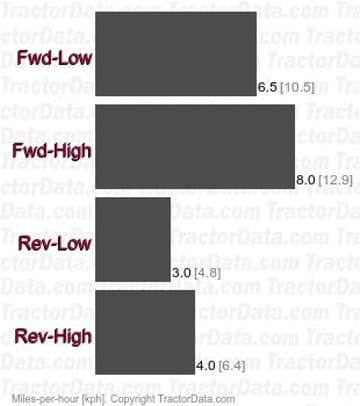

Speeds | |
|---|---|
 |
