Simplicity Regent 14G
The Simplicity Regent 14G is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: 5 forward and 1 reverse. Operating weight: 94 lbs 42 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
5 forward and 1 reverse
Operating Weight
94 lbs
42 kg
Overview
 | 1996 - 1999
Model year 1996-19971998-1999
Regent SeriesLawn tractor
Regent Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price | $2,295 (1996 ) |
$2,350 (1997 ) | |
Variants | |
|---|---|
514G | similar AGCO model |
Simplicity Regent 14G Engine | |
|---|---|
14HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Simplicity Regent 14G Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 450 lbs
204 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery CCA | 340 |
Battery volts | 12 |
References | |
|---|---|
 | |
1996 Dealer Prduct Guide published by Simplicity | |
1997 Spring Product Guide published in 1996, by Simplicity |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton 28N777 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Simplicity Regent 14G Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 67.75 inches
172 cm |
Width | 35 inches
88 cm |
Height (steering wheel) | 41.25 inches
104 cm |
Weight | 450 lbs
204 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
38" Mower deck | |
|---|---|
Type | mid-mount Simplicity 1692358 |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Weight | 94 lbs
42 kg |
Photos

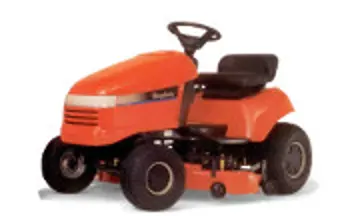

Simplicity Regent 14G tractor photo
Simplicity Lawn Tractors Simplicity Regent 14G Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Regent 14G.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
