Simplicity Regent 14H

The Simplicity Regent 14H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 94 lbs 42 kg.

Overview

	1996 - 1999 Model year 1996-19971997-1999 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price	$2,695 (1996 )
	$2,750 (1997 )
The 1997 model year Simplicity Regent 14H was also sold as the "Team Tractors" with colors and decals of various NFL and NCAA football teams. The Team Tractor concept started with the 1996 Packer Backer Tractor in Green Bay Packers team colors.

Variants
Chiefs	NFL-branded tractor
Colts	NFL-branded tractor
Packers	NFL-branded tractor
Panthers	NFL-branded tractor
Steelers	NFL-branded tractor
Vikings	NFL-branded tractor
Badgers	NCAA-branded tractor
Hawkeyes	NCAA-branded tractor
Nittany Lions	NCAA-branded tractor
Spartans	NCAA-branded tractor
Wolverines	NCAA-branded tractor
514H	similar AGCO model

Simplicity Regent 14H Engine
14HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Simplicity Regent 14H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	450 lbs 204 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3
Battery CCA	340
Battery volts	12

References
Tractors & Riding Mowers published in 1996, by Simplicity
1996 Dealer Prduct Guide published by Simplicity
1997 Spring Product Guide published in 1996, by Simplicity

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton 28P777
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 14H Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	67.75 inches 172 cm
Width	35 inches 88 cm
Height (steering wheel)	41.25 inches 104 cm
Weight	450 lbs 204 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Simplicity 1692358
	2-blade with manual lift
Cutting width	38 inches 96 cm
Weight	94 lbs 42 kg

Photos

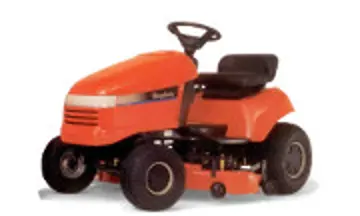

Simplicity Regent 14H
