Simplicity SunStar 14

The Simplicity SunStar 14 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 511 cc 31.2 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Sunstrand 15. Operating weight: 184 lbs 83 kg.

Overview

	1988 - 1989 SunStar SeriesGarden tractor SunStar Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
The SunStar 14 carried Simplicity model number 1691250.

Simplicity SunStar 14 Engine
14HP Kohler 511cc 1-cyl gasoline
Fuel tank	4.2 gal 15.9 L
Engine details ...

Simplicity SunStar 14 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical drum brakes
Open operator station.

Power Take-off (PTO)
Rear PTO Type	2000 OptOptional
Front PTO	independent
Clutch	electric
Front PTO Type	pulley

Dimensions & Tires
Wheelbase	51 inches 129 cm
Weight	825 to 1003 pounds
Front tire	16x6.50-8
Rear tire	23x8.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	400
Battery volts	12

References
Outdoor Power Equipment published in 1987, by Simplicity
Operator's Manual Front End Loader No's: 1691309 (1700450)

Engine

Engine Detail — 511 cc / 31.2 ci Gasoline

Manufacturer	Kohler Magnum
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Splash-lubricated engine.
Displacement	511 cc 31.2 ci
Bore/Stroke	3.5x3.25 inches 89 x 83 mm
Power (gross)	14 hp 10.4 kW
Air cleaner	dual element
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug	Champion RH10
Sparkplug gap	0.025 inches 0.635 mm

Transmission

Transmission — Sunstrand 15

Transmission	Sunstrand 15
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	6 qts 5.7 L
Oil type	ATF F
Peerless 2600 transaxle.

	ATF F

Dimensions

Simplicity SunStar 14 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.5-12

Dimensions
Wheelbase	51 inches 129 cm
Length	78 inches 198 cm
Width	38.25 inches 97 cm
Height (steering wheel)	47 inches 119 cm
Weight	825 lbs 374 kg
	1003 lbs (with 48-inch deck) 454 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity 1691009
	3-blade
Cutting width	42 inches 106 cm
Weight	184 lbs 83 kg

Photos

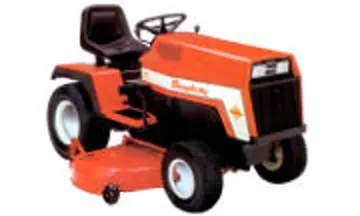

Simplicity SunStar 14 tractor photo
