Springfield 62A
The Springfield 62A is a tractor produced by Springfield Lawn Tractors. The listed engine power is Gasoline (gross): 4.5 hp / 3.4 kW. Transmission: 3 forward and 1 reverse. Operating weight: 277 lbs 125 kg.
Engine Power
Gasoline (gross): 4.5 hp / 3.4 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
277 lbs
125 kg
Overview
 | 1962
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Springfield (a part of Quick Manufacturing) |
Lawn tractor | |
Built in Springfield, Ohio, USA | |
Springfield 62A Engine | |
|---|---|
4.5HP 1-cyl gasoline | |
Engine details ...  |
Springfield 62A Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Mechanical drum brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 34 inches
86 cm |
Weight | 277 lbs
125 kg |
Front tire | 2.5x10 |
Rear tire | 4.00x12 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Riding Mowers published in 1962, by Springfield |
Engine
Engine Detail — Gasoline
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 4.5 hp
3.4 kW |
Starter type | manual recoil |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Springfield 62A Tires | |
|---|---|
Lawn/turf front | 2.5x10 |
Lawn/turf rear | 4.00x12 |
Dimensions | |
|---|---|
Wheelbase | 34 inches
86 cm |
Length | 46 inches
116 cm |
Shipping weight | 277 lbs
125 kg |
Attachments
Attachment overview | |
|---|---|
25" mid-mount mower deck | |
Blade |
25" Mower deck | |
|---|---|
Type | mid-mount Springfield |
1-blade | |
Cutting width | 25 inches
63 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Cut positions | 5 |
Photos

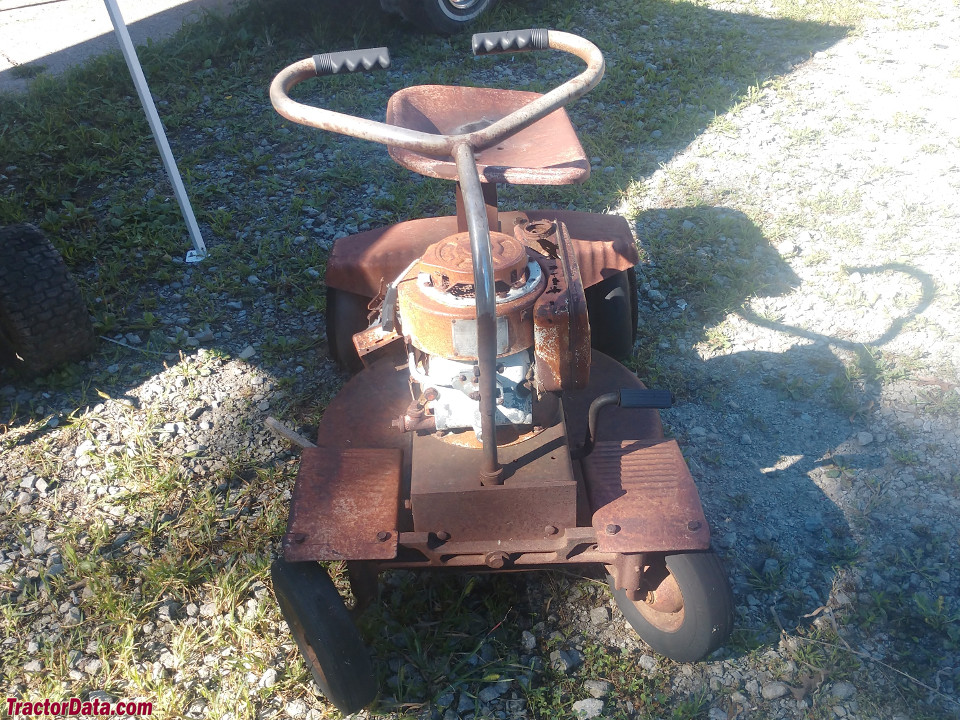

Springfield 62A
Springfield 62A
Springfield 62A
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Springfield Lawn Tractors Springfield 62A.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Springfield Lawn Tractors Springfield 62A Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Springfield Lawn Tractors Springfield 62A.
Converted Equivalents:
Horsepower (HP)4.5 hp
Kilowatts (kW)3.4 kW
Metric Horsepower (PS / CV)4.6 PS
