Springfield LT425
The Springfield LT425 is a tractor produced by Springfield Lawn Tractors. It is equipped with a 170 cc 10.4 ci engine. The listed engine power is Gasoline (gross): 4 hp / 3.0 kW. Transmission: 2 forward and 1 reverse. Operating weight: 201 lbs 91 kg.
Engine Power
Gasoline (gross): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Operating Weight
201 lbs
91 kg
Overview
 | 1965 - 1966
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Springfield (a part of Quick Manufacturing) |
Lawn tractor | |
Built in Springfield, Ohio, USA | |
Original price was $260 in 1965 | |
Springfield LT425 Engine | |
|---|---|
4HP Briggs & Stratton 170cc 1-cyl gasoline | |
Engine details ...  |
Springfield LT425 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 201 lbs
91 kg |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Lawn and Garden Equipment published in 1964, by Springfield |
Engine
Engine Detail — 170 cc / 10.4 ci Gasoline
Manufacturer | Briggs & Stratton 100902 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 170 cc
10.4 ci |
Bore/Stroke | 2.50x2.18 inches
64 x 55 mm |
Power (gross) | 4 hp
3.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
Dimensions
Springfield LT425 Tires |
|---|
Dimensions | |
|---|---|
Length | 48 inches
121 cm |
Width | 26 inches
66 cm |
Weight | 201 lbs
91 kg |
Attachments
25" Mower deck | |
|---|---|
Type | mid-mount Springfield |
1-blade | |
Cutting width | 25 inches
63 cm |
Photos

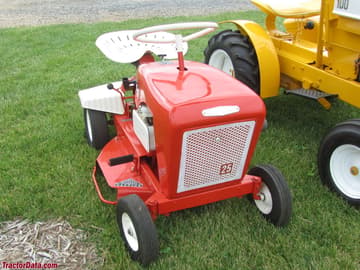

1966 model Springfield LT425.
1966 model Springfield LT425.
LT425 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Springfield Lawn Tractors Springfield LT425.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Springfield Lawn Tractors Springfield LT425 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Springfield Lawn Tractors Springfield LT425.
Converted Equivalents:
Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
