steiger cougar iii pt 250
 | 1979 - 1980
III SeriesFour-wheel Drive (4WD) tractor | 1979 - 1980 | III Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1979 - 1980 | ||||
III Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1979 - 1980 | |
|---|---|
III Series | |
Four-wheel Drive (4WD) tractor |
Transmission | |
|---|---|
Transmission | Spicer SST 1010 |
Type | constant mesh |
Gears | 20 forward and 4 reverse |
Clutch | hydraulic cerametallic dry disc |
Oil capacity | 16 qts*Transmission only
15.1 L |
| 37 qts*Transmission and transfer case
35.0 L |
Five-speed transmission with two ranges and a two-speed transfer case. Tractor must be stopped to shift ranges on transmission or transfer case. | |

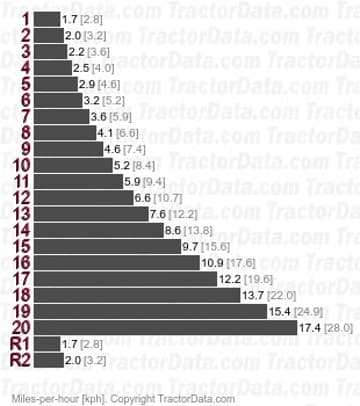

Speeds | |
|---|---|
With 18.4x34 tires and S-34 axles. | |
 |

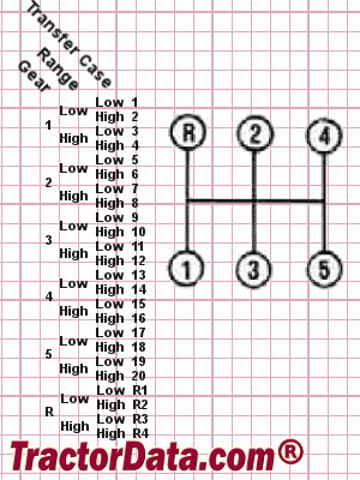

Shift Pattern | |
|---|---|
 |
