Steiger Panther IV CM-360

The Steiger Panther IV CM-360 is a tractor produced by Steiger. It is equipped with a 893 ci 14.6 L engine. The listed engine power is Diesel (listed): 360 hp / 268.5 kW. Transmission: Spicer SST 1010. Operating weight: 26903 lbs 12203 kg.

Engine Power

Diesel (listed): 360 hp / 268.5 kW

Fuel & Capacities

267 gal 1010.6 L

Transmission

Spicer SST 1010

Operating Weight

26903 lbs 12203 kg

Overview

	1983 - 1985 IV SeriesFour-wheel Drive (4WD) tractor IV Series Four-wheel Drive (4WD) tractor

Production
Manufacturer	Steiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA

Variants
CM360	Caterpillar engine
KM360	Cummins engine

Steiger Panther IV CM-360 Engine
Caterpillar 14.6L 6-cyl diesel
Fuel tank	267 gal 1010.6 L
Engine details ...

Steiger Panther IV CM-360 Transmission
20-speed Constant mesh 10-speed transmission with 2-speed transfer case.
Transmission details ...

Steiger Panther IV CM-360 Power
Engine	360 hp 268.5 kW
Drawbar (claimed)	301 hp 224.5 kW

Mechanical
Four-wheel drive
Articulated power steering
Hydraulic disc brakes
Steiger Safari Cab standard with air-conditioning.

Hydraulics
Type	open center
Pressure	2250 psi 155.1 bar
Valves	3 to 5
Pump flow	31 gpm 117.3 lpm

Tractor hitch
Rear Type	III OptOptional

Dimensions & Tires
Wheelbase	129 inches 327 cm
Weight	26903 lbs 12203 kg
Front tire	23.1x34
Rear tire	23.1x34
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	90
Batteries	3
Battery volts	12

References

Panther IV published in 1983, by Steiger
The Steiger Line published in 1983

Engine

Engine Detail — 893 ci / 14.6 L Diesel

Manufacturer	Caterpillar 3406
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	893 ci 14.6 L
Bore/Stroke	5.40x6.50 inches 137 x 165 mm
Power	360 hp 268.5 kW
Rated RPM	2100
Operating RPM	1700-2100
Torque	1175 lb-ft 1593.3 Nm
Torque RPM	1200
Starter volts	12
Oil capacity	36 qts 34.1 L
Coolant capacity	70 qts 66.2 L

Transmission

Transmission — Spicer SST 1010

Transmission	Spicer SST 1010
Type	Constant mesh 10-speed transmission with 2-speed transfer case.

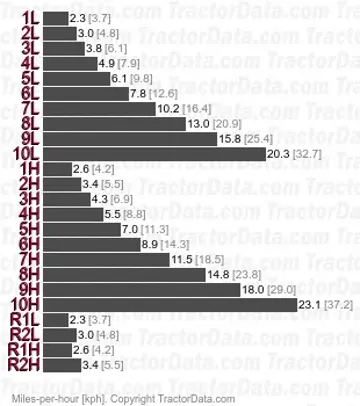

Gears	20 forward and 4 reverse

Dimensions

Steiger Panther IV CM-360 Tires
Ag front	23.1x34
Ag rear	23.1x34
Ag front	20.8x34
	20.8x38
	24.5x32
	30.5x32
Ag rear	20.8x34
	20.8x38
	24.5x32
	30.5x32

Dimensions
Wheelbase	129 inches 327 cm
Length	253.6 inches 644 cm
Width	96 inches*Width at fenders 243 cm
	159.5 inches*Width over 23.1x34 duals 405 cm
Shipping weight	26903 lbs 12203 kg
Max weight	34000 lbs 15422 kg
Front tread	79 to 136.3 inches 200 to 346 cm
Rear tread	79 to 136.3 inches 200 to 346 cm

Steiger Panther IV CM-360 Height
Hood	94.8 inches 240 cm
Cab	134.8 inches 342 cm
Exhaust	155.8 inches 395 cm

Photos

Steiger Panther IV CM-360 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Steiger Panther IV CM-360 based on its 360 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Steiger Panther IV CM-360.

Estimated Continuous Field Runtime: 14.3 hrs

Approximately 14.3 hours of continuous field operation at ~75% rated power on a full tank (267 gal / 1010.7 L).

Estimated 75% Load Fuel Burn~18.7 gal/hr (70.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
