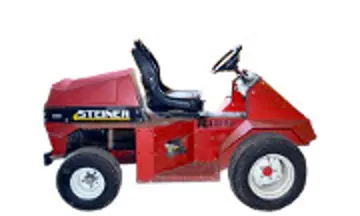

Steiner 220

The Steiner 220 is a tractor produced by Steiner Lawn Tractors. It is equipped with a 740 cc 45.2 ci engine. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW; Gasoline (listed): 21 hp / 15.7 kW; Diesel (listed): 21 hp / 15.7 kW; Gasoline (listed): 21 hp / 15.7 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1185 lbs (Onan) 537 kg.

Overview

	1988 - 1997 Garden tractor

Production
Manufacturer	Steiner
Garden tractor

Variants
75-70252	20HP air-cooled gas Onan
75-70275	16HP liquid-cooled diesel Kubota
75-70277	21HP liquid-cooled gas Kubota

Steiner 220 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Drum brakes
Open operator station.

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	1185 to 1295 pounds
Front tire	23x10.5-12
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Model 220 2x4 Turf Unit published by Steiner
Uniquely engineered for unmatched versatility published in 1997, by Steiner

Engine

Engine options
20HP Onan 781cc 2-cyl gasoline
21HP Kubota 599cc 3-cyl gasoline
21HP Kubota 599cc 3-cyl diesel
21HP Kubota 740cc 3-cyl gasoline

Engine Detail — 781 cc / 47.7 ci Gasoline

Manufacturer	Onan P220G
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft horizontally-opposed
Displacement	781 cc 47.7 ci
Bore/Stroke	3.258x2.875 inches 83 x 73 mm
Power	20 hp 14.9 kW
Starter	electric
Starter volts	12

Engine Detail — 599 cc / 36.6 ci Gasoline

Manufacturer	Kubota WG600
Fuel Type	Gasoline
Configuration	3-cylinder, liquid-cooled
Displacement	599 cc 36.6 ci
Bore/Stroke	2.52x2.45 inches 64 x 62 mm
Power	21 hp 15.7 kW
Starter	electric
Starter volts	12

Engine Detail — 599 cc / 36.6 ci Diesel

Manufacturer	Kubota D600
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	599 cc 36.6 ci
Bore/Stroke	2.52x2.45 inches 64 x 62 mm
Power	21 hp 15.7 kW
Starter	electric
Starter volts	12

Engine Detail — 740 cc / 45.2 ci Gasoline

Manufacturer	Kubota WG750
Fuel Type	Gasoline
Configuration	3-cylinder, liquid-cooled
Displacement	740 cc 45.2 ci
Bore/Stroke	2.68x2.68 inches 68 x 68 mm
Power	21 hp 15.7 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Steiner 220 Tires
Lawn/turf front	23x10.5-12
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	50 inches 127 cm
Length	82 inches 208 cm
Width	54 inches 137 cm
Height	45 inches 114 cm
Weight	1185 lbs (Onan) 537 kg
	1295 lbs (Kubota) 587 kg

Attachments

Attachment overview
48" front-mount mower deck
60" front-mount mower deck
72" front-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

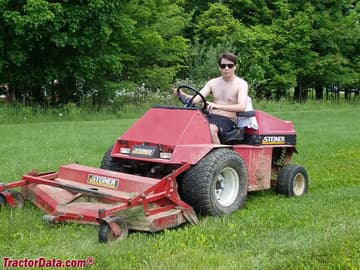

Steiner 220
