Steyr 495 Kompakt

The Steyr 495 Kompakt is a tractor produced by Steyr. It is equipped with a 274.6 ci 4.5 L engine. The listed engine power is Diesel (listed): 90 hp / 67.1 kW. Transmission: STEYR Power-2. Operating weight: 6,724 lbs 3050 kg.

Engine Power

Diesel (listed): 90 hp / 67.1 kW

Fuel & Capacities

23.8 gal 90.1 L

Transmission

STEYR Power-2

Operating Weight

6,724 lbs 3050 kg

Overview

	2005 - 2008 Kompakt SeriesUtility tractor Kompakt Series Utility tractor

Production
Manufacturer	Steyr
Utility tractor

Steyr 495 Engine
Iveco 4.5L 4-cyl diesel
Fuel tank	23.8 gal 90.1 L
Engine details ...

Steyr 495 Power
Engine	90 hp 67.1 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Valves	4
Total flow	12.4 gpm 46.9 lpm
	15 gpmOptOptional 56.8 lpm

Tractor hitch
Rear lift	5,886 lbs 2669 kg
Front lift	3,417 lbs 1549 kg

Power Take-off (PTO)
Rear PTO Type	540/540E/1000
Front PTO Type	1000

Dimensions & Tires
Wheelbase	86 inches 218 cm
Weight	6,724 lbs 3050 kg
Front tire	405/70R20
Rear tire	540/65R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator

Engine

Engine Detail — 274.6 ci / 4.5 L Diesel

Manufacturer	Iveco NEF
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	274.6 ci 4.5 L
Bore/Stroke	4.09x5.20 inches 104 x 132 mm
Emissions	Tier II
Power	90 hp 67.1 kW
Rated RPM	2300
Torque	269.2 lb-ft 365.0 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed
24-speed

Transmission — STEYR Synchro Shift

Transmission	STEYR Synchro Shift
Gears	12 forward and reverse

Transmission — STEYR Power-2

Transmission	STEYR Power-2
Gears	24 forward and 12 reverse

Dimensions

Steyr 495 Tires
Ag front	405/70R20
Ag rear	540/65R30

Dimensions
Wheelbase	86 inches 218 cm
Length	140.5 inches 356 cm
Width	90.5 inches 229 cm
Weight	6,724 lbs 3050 kg

Photos

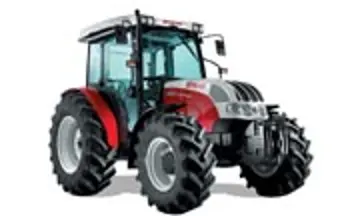

Steyr 495 Kompakt tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Steyr 495 Kompakt based on its 90 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Steyr 495 Kompakt.

Estimated Continuous Field Runtime: 5.1 hrs

Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (23.8 gal / 90.1 L).

Estimated 75% Load Fuel Burn~4.7 gal/hr (17.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
