Steyr 8110

The Steyr 8110 is a tractor produced by Steyr. It is equipped with a 316.2 ci 5.2 L engine. The rated power output is 100 hp (SAE) 74.6 kW. Transmission: Steyr-Matic. Operating weight: 8576 to 9568 pounds.

Overview

	1984 - 1994	1984 - 1994

Production
Manufacturer	Steyr
The two-wheel drive version of the Steyr 8110 was available until 1987. After that point, only the 4x4 was available.

Steyr 8110 Engine
Steyr 5.2L 6-cyl diesel
Fuel tank	31.7 gal 120.0 L
	37 gal (optional) 140.0 L
Engine details ...

Steyr 8110 Power
Engine	100 hp 74.6 kW
PTO (claimed)	84.7 hp 63.2 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Brakes	disc
	engine exhuast brake optional
Trailer brakes	air brakes optional
Steyr SK2 cab. Steyer Twin Cab optional. Reversible controls available.

Hydraulics
Pressure	2,538 psi 175.0 bar
Valves	3
Total flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear lift	10,580 lbs 4799 kg
	12,860 lbs (1987+) 5833 kg
Front lift	4,856 lbs 2202 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Front PTO Type	1110

Dimensions & Tires
Wheelbase	102.2 inches 259 cm
Weight	8576 to 9568 pounds
Front tire	9.00-16
Rear tire	16.9R34
Full dimensions and tires ...

References
8110-8120 published in 1988, by Steyr

Engine

Engine Detail — 316.2 ci / 5.2 L Diesel

Manufacturer	Steyr WD 611.43
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	316.2 ci 5.2 L
Bore/Stroke	3.937x4.331 inches 100 x 110 mm
Power	100 hp (SAE) 74.6 kW
Rated RPM	2300
Torque	245.6 lb-ft 333.0 Nm
Torque RPM	1400

Transmission

Transmission options
18-speed synchronized
36-speed partial power shift
24-speed synchronized with creeper
48-speed partial power shift

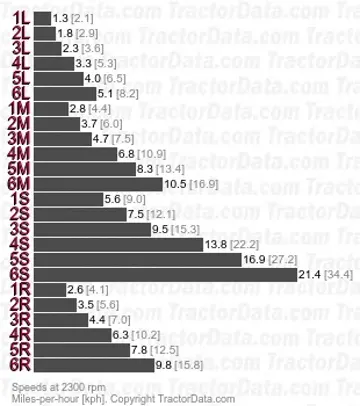

Transmission — 18 forward and 6 reverse synchronized

Type	synchronized
Gears	18 forward and 6 reverse
Six gears (1-6) in three ranges (L/M/V) plus reverse range. In some areas sixth gears was not available, providing a total of 15 forward and 5 reverse.

Transmission — Steyr-Matic

Transmission	Steyr-Matic
Type	partial power shift
Gears	36 forward and 12 reverse

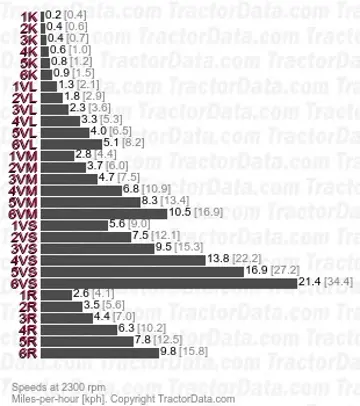

Transmission — 24 forward and 6 reverse synchronized with creeper

Type	synchronized with creeper
Gears	24 forward and 6 reverse
Additional creeper range (K) added to the basic transmission.

Transmission — Steyr-Matic

Transmission	Steyr-Matic
Type	partial power shift
Gears	48 forward and 12 reverse

Dimensions

Steyr 8110 Tires
Ag front	9.00-16 (2WD)
	12.4R24 (4WD)
Ag rear	16.9R34

Dimensions
Wheelbase	102.2 inches 259 cm
Length	167.6 inches 425 cm
Width	84.3 inches 214 cm
Height (cab)	102.6 inches 260 cm
	110.2 inches (Twin Cab) 279 cm
Clearance (front axle)	15.4 inches (4WD) 39 cm
Front tread	66.1 inches 167 cm
Rear tread	70.1 to 84.7 inches 178 to 215 cm

Steyr 8110 Weight
	8,576 lbs (2WD) 3890 kg
	9,414 lbs (4WD) 4270 kg
	9,568 lbs (4WD Twin Cab) 4340 kg
Max capacity	14,330 lbs (4WD) 6500 kg

Photos

Steyr 8110, left side.

Steyr 8110, front-right view.

Steyr 8110, right side.
