Toro 11-42

The Toro 11-42 is a tractor produced by Toro Lawn Tractors. It is equipped with a 399 cc 24.4 ci engine. The rated power output is 11 hp 8.2 kW. Transmission: Peerless 801. Drive type: belt. Operating weight: 462 lbs 209 kg.

Overview

	1978 - 1985 Lawn tractor
1978 - 1985
Lawn tractor

Production
Manufacturer	Toro
Lawn tractor
Toro lawn tractor model 57356.

Toro 11-42 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	1.75 gal 6.6 L
Engine details ...

Toro 11-42 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	46 inches 116 cm
Weight	462 lbs 209 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
1980 Guide to Toro Riding Mowers

Engine

Engine Detail — 399 cc / 24.4 ci Gasoline

Manufacturer	Briggs & Stratton 252707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.4 ci
Bore/Stroke	3.4375x2.625 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Fuel system	carburetor
Torque	16.8 lb-ft 22.8 Nm
Torque RPM	2800
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless 801

Transmission	Peerless 801
Type	belt-driven gear
Gears	5 forward and 1 reverse
Clutch	friction disc

Dimensions

Toro 11-42 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	46 inches 116 cm
Length	62 inches 157 cm
Height (steering wheel)	41 inches 104 cm
Shipping weight	462 lbs 209 kg
Front tread	33 inches 83 cm
Rear tread	35 inches 88 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount Toro
	3-blade with manual lift
Cutting width	42 inches 106 cm
Drive	belt
Overall width	54 inches 137 cm
Cut height	1 to 4.5 inch 2 to 11 cm

Photos

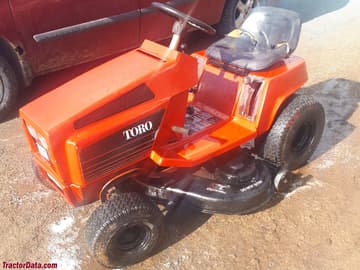

Toro 11-42
