Toro 13-38HXL
The Toro 13-38HXL is a tractor produced by Toro Lawn Tractors. The listed engine power is Gasoline (listed): 13 hp / 9.7 kW. Transmission: Hydro-Gear 321-0500.
Engine Power
Gasoline (listed): 13 hp / 9.7 kW
Fuel & Capacities
Gasoline
Transmission
Hydro-Gear 321-0500
Overview
 | 1994 - 1996
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Lawn tractor | |
Toro 13-38HXL Engine | |
|---|---|
13HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Toro 13-38HXL Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Front tire | 15x6-6 |
Rear tire | 18x9.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 160 |
Battery volts | 12 |

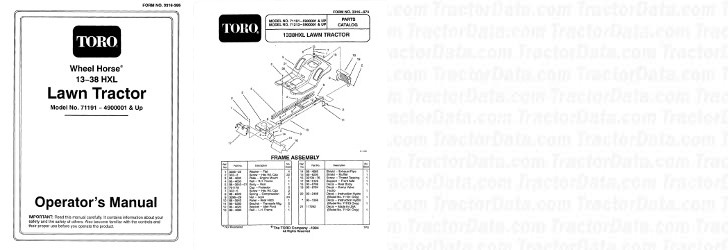

References | |
|---|---|
 | |
13-38HXL Lawn Tractor (3316-395) published in 1994 | |
1338HXL Lawn Tractor (3316-974) published in 1994 |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton 28M707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power | 13 hp
9.7 kW |
Fuel system | carburetor |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ-19LM |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |
Transmission
Transmission — Hydro-Gear 321-0500
Transmission | Hydro-Gear 321-0500 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Toro 13-38HXL Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 18x9.50-8 |
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Blade |
36" Mower deck | |
|---|---|
Type | mid-mount Toro |
2-blade | |
Cutting width | 36 inches
91 cm |
Belt | 88-6250 |
Cut height | 1 to 4 inch
2 to 10 cm |
Cut positions | 7 |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro 13-38HXL.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Toro Lawn Tractors Toro 13-38HXL Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro 13-38HXL.
Converted Equivalents:
Horsepower (HP)13 hp
Kilowatts (kW)9.7 kW
Metric Horsepower (PS / CV)13.2 PS
