Toro Wheel Horse 312-8

The Toro Wheel Horse 312-8 is a tractor produced by Toro Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW; Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: Uni-Drive. Operating weight: 610 lbs 276 kg.

Overview

	1990 - 2001 Classic 300 SeriesGarden tractor Classic 300 Series Garden tractor

Production
Manufacturer	Toro
Garden tractor

Toro 312-8 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	610 lbs 276 kg
Front tire	15x6.00
Rear tire	23x8.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	210
Battery volts	12

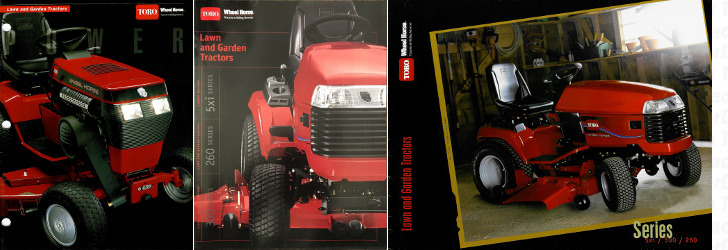

References
Lawn and Garden Tractors published in 1996, by Toro
Lawn and Garden Tractors published in 1998, by Toro
Lawn and Garden Tractors published in 1999, by Toro

Engine

Engine options
12.5HP Kohler 476cc 1-cyl gasoline
12.5HP Kohler 398cc 1-cyl gasoline

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler Magnum M12.5
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Original engine, the Kohler Magnum was used through the 1997 model year, tractor serial number 7999999.
Displacement	476 cc 29.07 ci
Bore/Stroke	3.38x3.25 inches 86 x 83 mm
Power (gross)	12.5 hp 9.3 kW
Starter	electric
Starter volts	12

Engine Detail — 398 cc / 24.3 ci Gasoline

Manufacturer	Kohler Command CH12.5
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
The Kohler Command replaced the Magnum for the 1998 model year, tractor seral number 8900001.
Displacement	398 cc 24.3 ci
Bore/Stroke	3.43x2.64 inches 87 x 67 mm
Power (gross)	12.5 hp 9.3 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Uni-Drive

Transmission	Uni-Drive
Type	belt-driven gear
Gears	6 forward and 2 reverse

Dimensions

Toro 312-8 Tires
Lawn/turf front	15x6.00
Lawn/turf rear	23x8.50

Dimensions
Wheelbase	45.5 inches 115 cm
Length	65 inches 165 cm
Width	36.5 inches 92 cm
Weight	610 lbs 276 kg

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

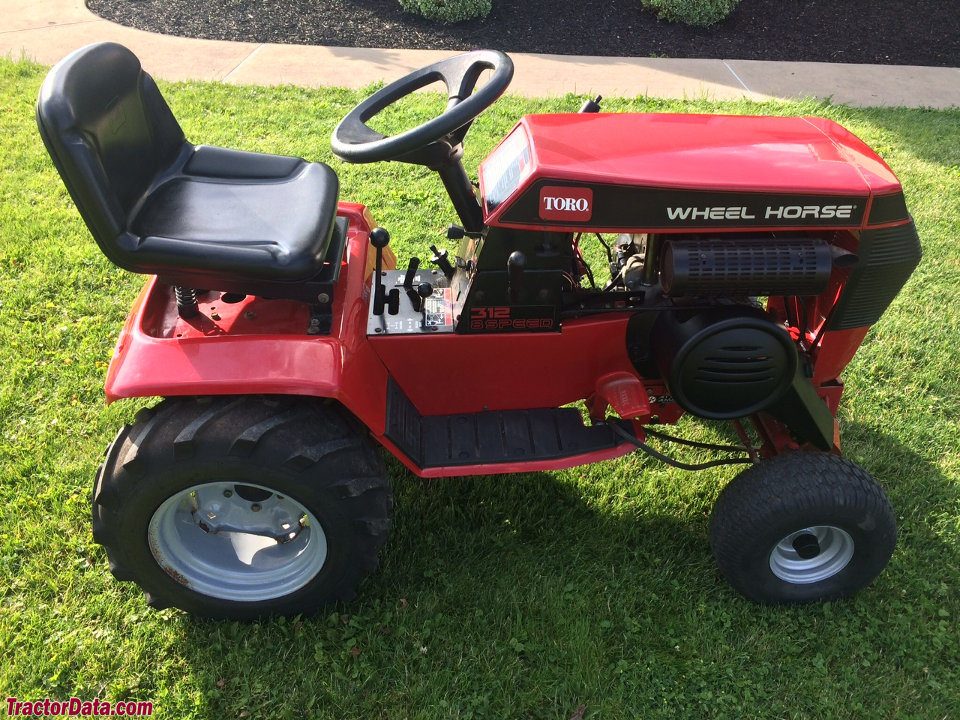

Toro Wheel Horse 312-8

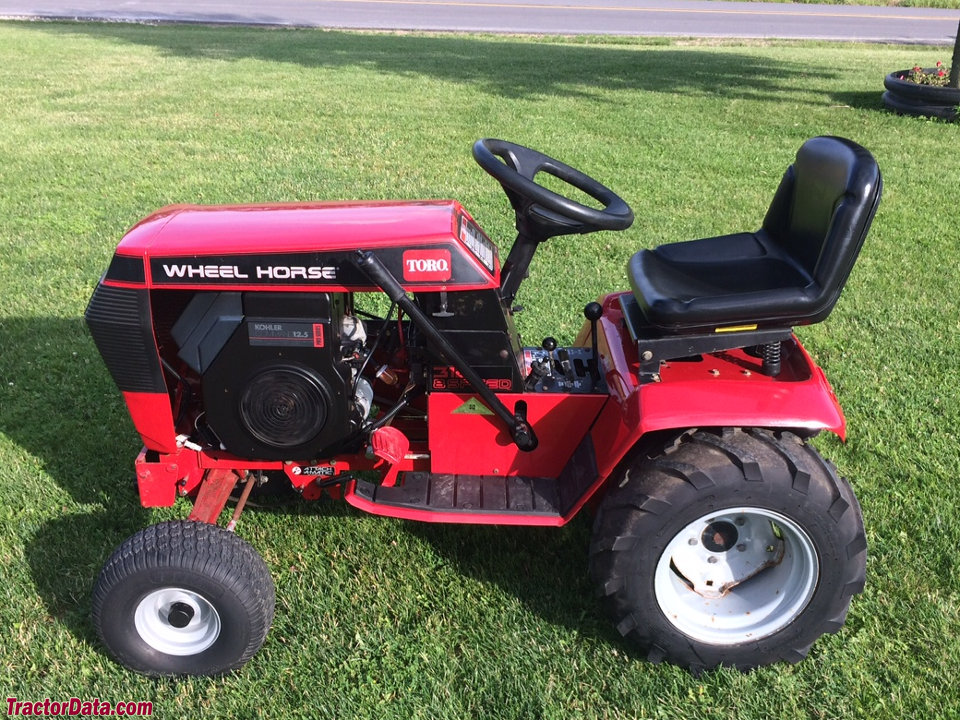

Toro Wheel Horse 312-8
