Toro Wheel Horse 523Dxi
The Toro Wheel Horse 523Dxi is a tractor produced by Toro Lawn Tractors. It is equipped with a 952 cc 58.1 ci engine. The listed engine power is Diesel (gross): 23 hp / 17.2 kW. Transmission: Eaton Uni-Drive. Operating weight: 1150 lbs 521 kg.
Engine Power
Diesel (gross): 23 hp / 17.2 kW
Fuel & Capacities
4.25 gal
16.1 L
Transmission
Eaton Uni-Drive
Operating Weight
1150 lbs
521 kg
Overview
 | 1998 - 2002
5xi SeriesGarden tractor
5xi Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Garden tractor | |
Original price was $9,469 in 1999 | |
Toro 523Dxi Engine | |
|---|---|
23HP Briggs & Stratton 952cc 3-cyl diesel | |
Fuel tank | 4.25 gal
16.1 L |
Engine details ...  | |
Toro 523Dxi Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station with adjustable seat. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Mid PTO Type | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 52 inches
132 cm |
Weight | 1150 lbs
521 kg |
Front tire | 16x7.5 |
Rear tire | 23x10.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 40 |
Battery CCA | 495 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual 523Dxi Tractor (3319-220) published in 1997 | |
5xi Series Tractor Service Manual published in 1997 | |
Lawn and Garden Tractors published in 1998, by Toro | |
Lawn and Garden Tractors published in 1999, by Toro |
Engine
Engine Detail — 952 cc / 58.1 ci Diesel
Manufacturer | Briggs & Stratton 582447 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 952 cc
58.1 ci |
Bore/Stroke | 2.834x3.07 inches
72 x 78 mm |
Power (gross) | 23 hp
17.2 kW |
Rated RPM | 3400 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 5 qts
4.7 L |
Oil capacity | 3.5 qts
3.3 L |
Oil change | 100 h |
Transmission
Transmission — Eaton Uni-Drive
Transmission | Eaton Uni-Drive |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 7 qts
6.6 L |
Oil type | SAE 10W-30 |
Oil change | 200 h |
 | |
Toro 523Dxi Transmission | |
|---|---|
 |
Dimensions
Toro 523Dxi Tires | |
|---|---|
Lawn/turf front | 16x7.5 |
Lawn/turf rear | 23x10.50 |
Dimensions | |
|---|---|
Wheelbase | 52 inches
132 cm |
Length | 76.5 inches
194 cm |
Width | 40.5 inches
102 cm |
Weight | 1150 lbs
521 kg |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
52" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

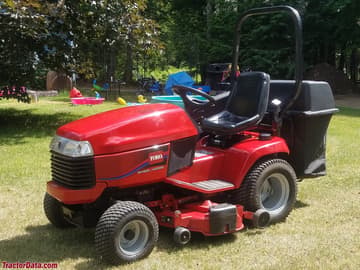

Toro Wheel Horse 523Dxi
Recommended Implements & Sizing Guide
Engineering recommendations for Toro Lawn Tractors Toro Wheel Horse 523Dxi based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Wheel Horse 523Dxi.
Estimated Continuous Field Runtime: 3.6 hrs
Approximately 3.6 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.1 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Toro Lawn Tractors Toro Wheel Horse 523Dxi Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Wheel Horse 523Dxi.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
Direct Competitor Comparison
Compare Toro Wheel Horse 523Dxi against same-era industry alternatives in the same horsepower class.
Current Model
Toro Lawn Tractors
Toro Wheel Horse 523Dxi
Engine Power:Diesel (gross): 23 hp / 17.2 kW
★ Baseline Reference
