Toro 700

The Toro 700 is a tractor produced by Toro Lawn Tractors. It is equipped with a 245 cc 15 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: Peerless 352. Operating weight: 260 lbs 117 kg.

Overview

	1970 - 1973 Lawn tractor

Production
Manufacturer	Toro
Lawn tractor

Variants
700	manual recoil start
770	electric start

Toro 700 Engine
7HP Tecumseh 245cc 1-cyl gasoline
Fuel tank	0.9 gal 3.4 L
Engine details ...

Toro 700 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	independent

Dimensions & Tires
Wheelbase	39 inches 99 cm
Weight	260 lbs 117 kg
Front tire	11x4.00-5
Rear tire	15x6.00-6
Full dimensions and tires ...

Engine

Engine Detail — 245 cc / 15 ci Gasoline

Manufacturer	Tecumseh V70
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	245 cc 15 ci
Bore/Stroke	2.75x2.53 inches 70 x 64 mm
Power (gross)	7 hp 5.2 kW
Starter type	recoil

Transmission

Transmission — Peerless 352

Transmission	Peerless 352
Type	belt-driven gear
Gears	3 forward and 1 reverse
Clutch	idler pulley

Dimensions

Toro 700 Tires
Lawn/turf front	11x4.00-5
Lawn/turf rear	15x6.00-6

Dimensions
Wheelbase	39 inches 99 cm
Length	52.5 inches 133 cm
Width	33.5 inches 85 cm
Height	33 inches 83 cm
Weight	260 lbs 117 kg
Front tread	23.5 inches 59 cm
Rear tread	22 inches 55 cm

Attachments

Attachment overview
32" mid-mount mower deck
Blade

32" Mower deck
Type	mid-mount Toro
	2-blade
Cutting width	32 inches 81 cm
Cut height	1.5 to 3.25 inch 3 to 8 cm

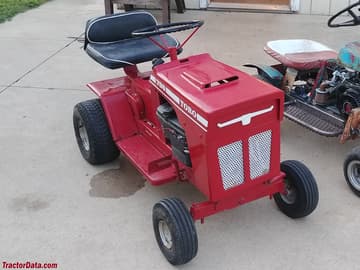

Photos

Toro 700
