Toro 6 HP 57101

The Toro 6 HP 57101 is a tractor produced by Toro Lawn Tractors. It is equipped with a 221 cc 13.53 ci engine. The listed engine power is Gasoline (gross): 6 hp / 4.5 kW. Transmission: Peerless 352. Operating weight: 280 lbs 127 kg.

Overview

	1968 Lawn tractor

Production
Manufacturer	Toro
Lawn tractor
Original price was $450 in 1968

Variants
57101	manual start
57201	electric start

Toro 6 HP Engine
6HP Tecumseh 221cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Toro 6 HP Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	independent

Dimensions & Tires
Wheelbase	36 inches 91 cm
Weight	280 lbs 127 kg
Front tire	11x4.00-5
Rear tire	13x5.00-6
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual 6HP Lawn Tractor (139-68) published in 1968
Lawn Tractors published in 1968, by Toro
The "Worth" Mower published in 1968, by Toro
Lawn Tractors - Riding Mowers - Suburban Tractors published in 1968, by Toro

Engine

Engine Detail — 221 cc / 13.53 ci Gasoline

Manufacturer	Tecumseh V60
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	221 cc 13.53 ci
Bore/Stroke	2.625x2.50 inches 67 x 64 mm
Power (gross)	6 hp 4.5 kW
Starter	manual recoil *Model 57101
	electric *Model 57201
Starter volts	12
Oil capacity	0.84 qts 0.8 L

Transmission

Transmission — Peerless 352

Transmission	Peerless 352
Type	belt-driven gear
Gears	3 forward and 1 reverse
Clutch	idler pulley

Dimensions

Toro 6 HP Tires
Lawn/turf front	11x4.00-5
Lawn/turf rear	13x5.00-6

Dimensions
Wheelbase	36 inches 91 cm
Length	51.75 inches 131 cm
Width	29.5 inches 74 cm
Height (steering wheel)	38.25 inches 97 cm
Weight	280 lbs 127 kg
Rear axle	0.875 inch diameter 22 mm

Attachments

25" Mower deck
Type	mid-mount Toro
	1-blade
Cutting width	25 inches 63 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm
Cut positions	5

Photos

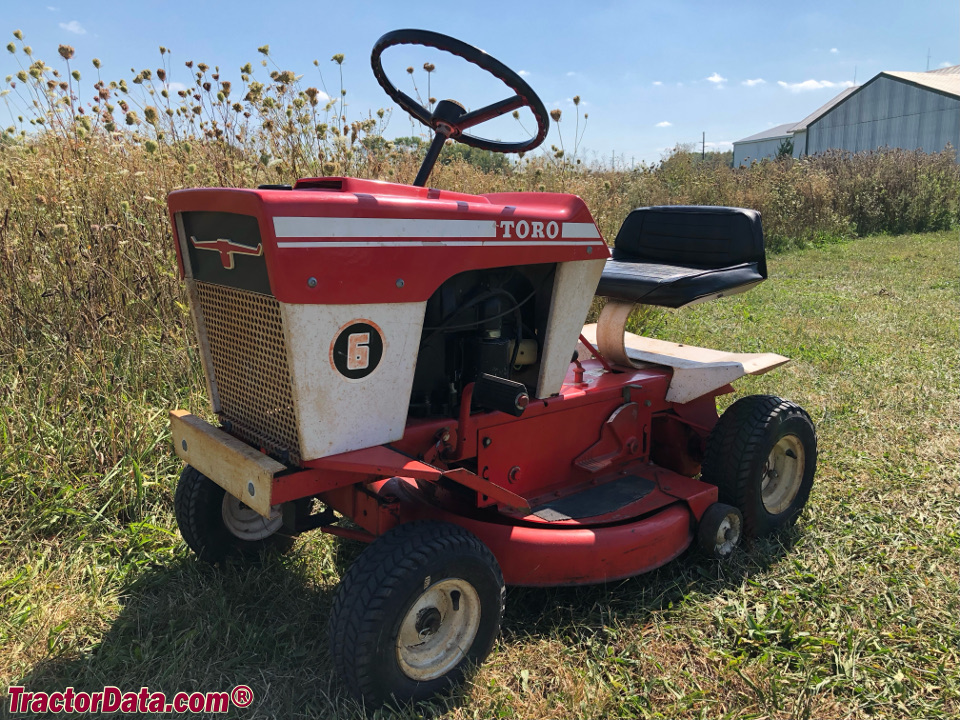

Toro 6 HP 57101
