Toro 8-25 56123
The Toro 8-25 56123 is a tractor produced by Toro Lawn Tractors. It is equipped with a 318 cc 19.43 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: Peerless. Operating weight: 305 lbs 138 kg.
Engine Power
8 hp
6.0 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
Peerless
Operating Weight
305 lbs
138 kg
Toro Lawn Tractors Toro 8-25 56123 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989 - 1998
Model year 1989-19901991-19921993-1998
Riding lawn mower |
|---|---|
1989 - 1998 | |
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower | |
1989 - 1998 | |
|---|---|
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower |
Production | |
|---|---|
Manufacturer | Toro |
Riding lawn mower | |
Variants |
|---|
Toro 8-25 Engine | |
|---|---|
8HP Tecumseh 318cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Toro 8-25 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 40 inches
101 cm |
Weight | 305 lbs
138 kg |
Front tire | 11x4.00-5 |
Rear tire | 15x6.00-6 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 1989 - 1998
Model year 1989-19901991-19921993-1998
Riding lawn mower |
|---|---|
1989 - 1998 | |
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower | |
1989 - 1998 | |
|---|---|
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower |
Engine Detail — 318 cc / 19.43 ci Gasoline
Manufacturer | Tecumseh TVXL195 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.43 ci |
Power (gross) | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1989 - 1998
Model year 1989-19901991-19921993-1998
Riding lawn mower |
|---|---|
1989 - 1998 | |
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower | |
1989 - 1998 | |
|---|---|
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower |
Transmission — Peerless
Transmission | Peerless |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Clutch | mechanical idler pulley |
 | |
Dimensions
| 1989 - 1998
Model year 1989-19901991-19921993-1998
Riding lawn mower |
|---|---|
1989 - 1998 | |
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower | |
1989 - 1998 | |
|---|---|
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower |
Toro 8-25 Tires | |
|---|---|
Lawn/turf front | 11x4.00-5 |
Lawn/turf rear | 15x6.00-6 |
Dimensions | |
|---|---|
Wheelbase | 40 inches
101 cm |
Length | 52 inches
132 cm |
Height (steering wheel) | 38 inches
96 cm |
Shipping weight | 305 lbs
138 kg |
Attachments
| 1989 - 1998
Model year 1989-19901991-19921993-1998
Riding lawn mower |
|---|---|
1989 - 1998 | |
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower | |
1989 - 1998 | |
|---|---|
Model year 1989-19901991-19921993-1998 | |
Riding lawn mower |
25" Mower deck | |
|---|---|
Type | mid-mount Toro |
1-blade with manual lift | |
Cutting width | 25 inches
63 cm |
Overall width | 31 inches
78 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Cut positions | 5 |
Photos

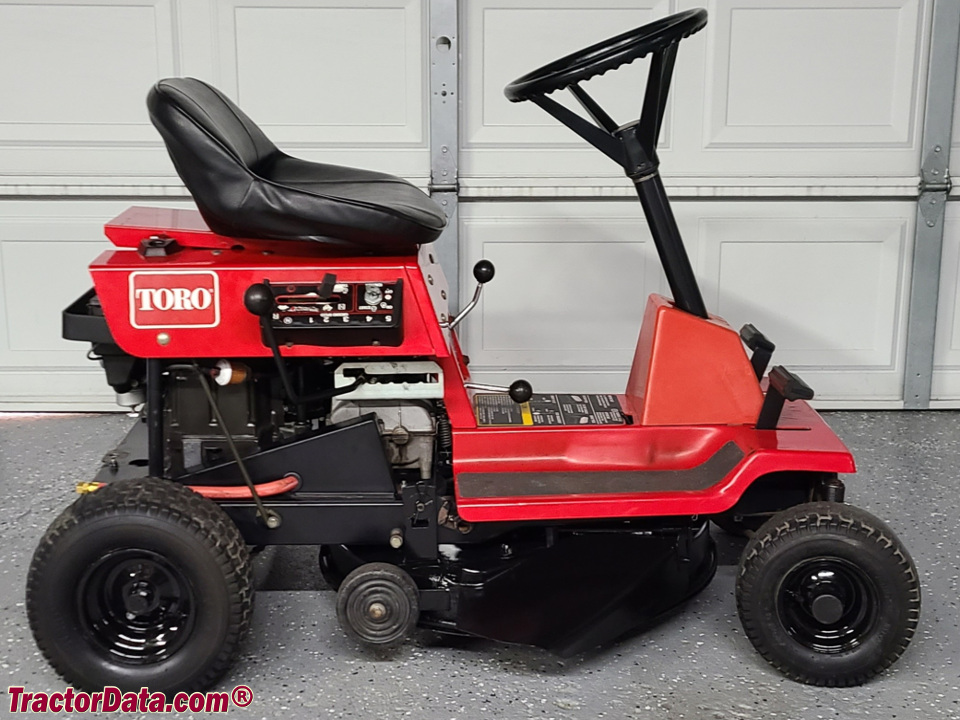

Toro 8-25 56123
