Toro GMT 230 30804

The Toro GMT 230 30804 is a tractor produced by Toro Lawn Tractors. It is equipped with a 945 cc 57.7 ci engine. The listed engine power is Gasoline (listed): 23 hp / 17.2 kW. Transmission: Sundstrand. Operating weight: 1000 lbs 453 kg.

Engine Power

Gasoline (listed): 23 hp / 17.2 kW

Fuel & Capacities

Gasoline

Transmission

Sundstrand

Operating Weight

1000 lbs 453 kg

Overview

	1978

Production
Manufacturer	Toro
Built in Bloomington, Minnesota, USA

Toro GMT 230 Engine
23HP Kohler 945cc 2-cyl gasoline
Engine details ...

Toro GMT 230 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Articulated power steering
Mechanical drum brakes

Dimensions & Tires
Weight	1000 lbs 453 kg
Front tire	23x10.50-12
Rear tire	23x10.50-12
Full dimensions and tires ...

Engine

Engine Detail — 945 cc / 57.7 ci Gasoline

Manufacturer	Kohler K582S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	945 cc 57.7 ci
Bore/Stroke	3.50x3.00 inches 89 x 76 mm
Power	23 hp 17.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Sundstrand

Transmission	Sundstrand
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Toro GMT 230 Tires
Lawn/turf front	23x10.50-12
Lawn/turf rear	23x10.50-12

Dimensions
Weight	1000 lbs 453 kg

Attachments

Attachment overview
48" front-mount mower deck
60" front-mount mower deck
Snowblower
Blade

Photos

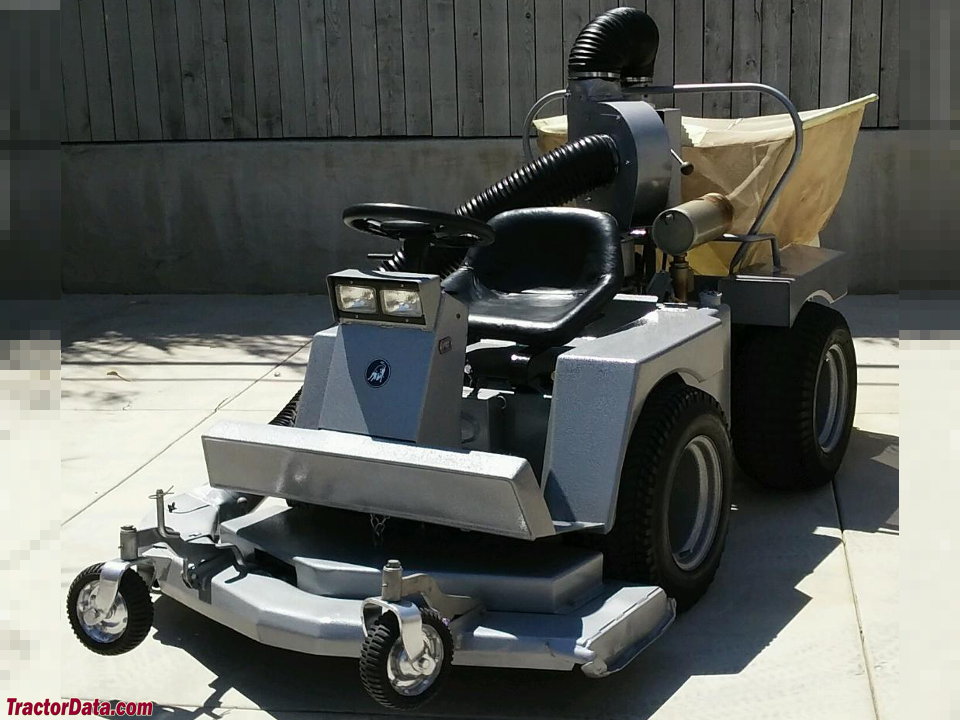

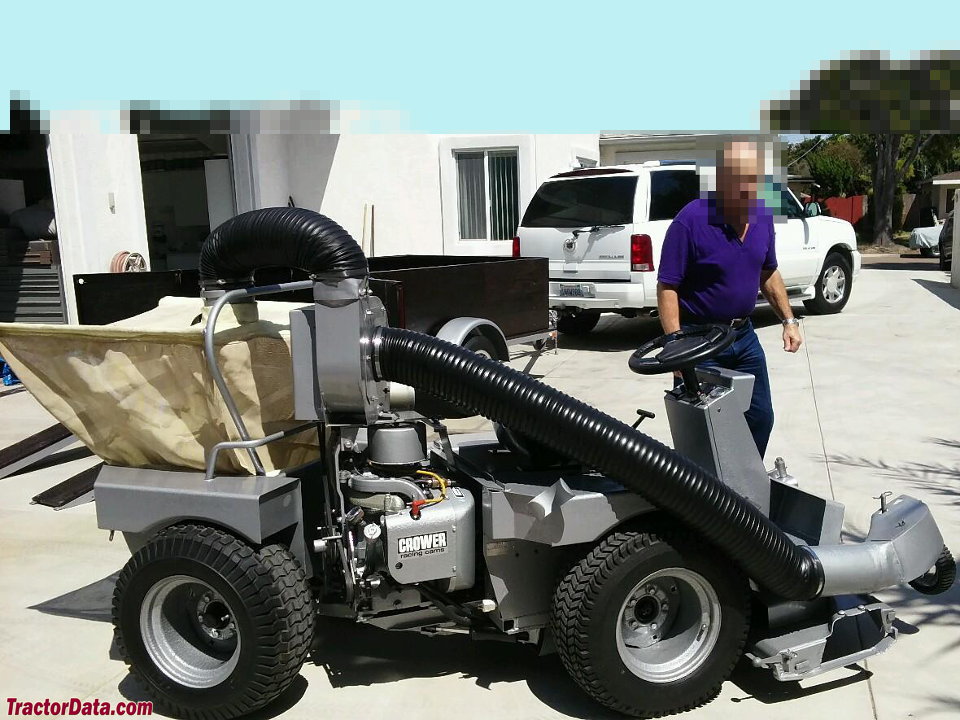

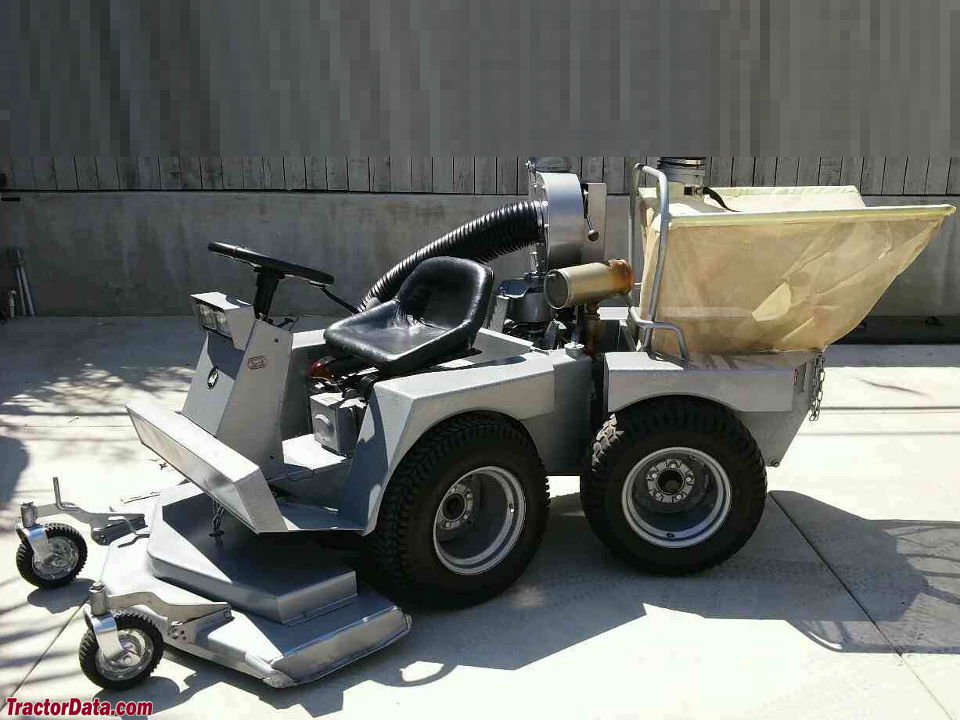

Toro GMT 230 30804

Recommended Implements & Sizing Guide

Engineering recommendations for Toro Lawn Tractors Toro GMT 230 30804 based on its 23 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro GMT 230 30804.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Toro Lawn Tractors Toro GMT 230 30804 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro GMT 230 30804.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)23 hp

Kilowatts (kW)17.2 kW

Metric Horsepower (PS / CV)23.3 PS

Direct Competitor Comparison

Compare Toro GMT 230 30804 against same-era industry alternatives in the same horsepower class.

Current Model

Toro Lawn Tractors
