Toro Suburban 12 55400
The Toro Suburban 12 55400 is a tractor produced by Toro Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: Peerless 2301. Drive type: belt.
Engine Power
Gasoline (gross): 12 hp / 8.9 kW
Drive & Traction
belt
Fuel & Capacities
Gasoline
Transmission
Peerless 2301
Overview
 | 1967 - 1968
Model year 19671968
Suburban SeriesGarden tractor
Suburban Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Garden tractor | |
Original price was $1,000 in 1967 | |
Toro Suburban 12 Engine | |
|---|---|
12HP Kohler 476cc 1-cyl gasoline | |
Engine details ...  |
Toro Suburban 12 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Rear tire | 8x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | starter-generator |
Battery volts | 12 |

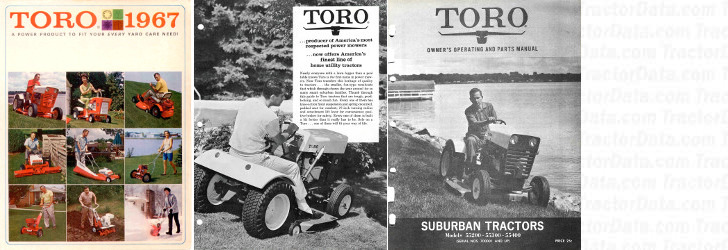

References | |
|---|---|
 | |
Toro 1967 | |
Home Utility Tractors published in 1967, by Toro | |
Operator's Manual Suburban Tractors (172-67) published in 1966 |
Engine
Engine Detail — 476 cc / 29.07 ci Gasoline
Manufacturer | Kohler K301 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 476 cc
29.07 ci |
Bore/Stroke | 3.375x3.25 inches
86 x 83 mm |
Power (gross) | 12 hp
8.9 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 2301
Transmission | Peerless 2301 |
Type | belt-driven gear |
Gears | 4 forward and 1 reverse |
Clutch | mechanical idler pulley |
Dimensions
Toro Suburban 12 Tires | |
|---|---|
Lawn/turf rear | 8x12 |
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
42" Mower deck | |
|---|---|
Type | mid-mount Toro 59004 |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Drive | belt |
Cut height | 2 to 4 inch
5 to 10 cm |
Cut positions | 5 |
Photos
Toro Suburban 12 55400 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Suburban 12 55400.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Toro Lawn Tractors Toro Suburban 12 55400 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Suburban 12 55400.
Converted Equivalents:
Horsepower (HP)12 hp
Kilowatts (kW)8.9 kW
Metric Horsepower (PS / CV)12.2 PS
