TractorData Logo
TractorData

Toro Suburban 7

The Toro Suburban 7 is a tractor produced by Toro Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: Peerless 600. Drive type: belt. Operating weight: 312 lbs (recoil) 141 kg.

Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Drive & Traction
belt
Fuel & Capacities
1 gal 3.8 L
Transmission
Peerless 600
Operating Weight
312 lbs (recoil) 141 kg

Overview

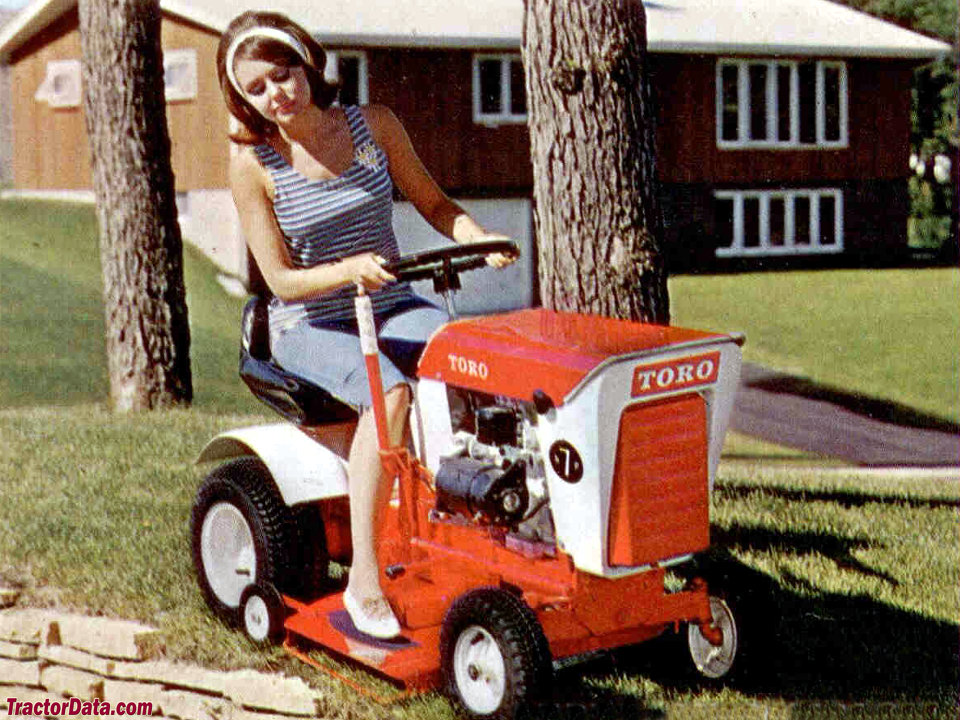

Toro Suburban 7 tractor photo
1967 - 1968 Suburban Compact SeriesLawn tractor Suburban Compact Series Lawn tractor
Production
Manufacturer
Toro
Lawn tractor
Original price was $600 in 1967
Variants
55000
manual start
55001
manual start
55100
electric start
55101
electric start
Toro Suburban 7 Engine
7HP Briggs & Stratton 275cc 1-cyl gasoline
Fuel tank
1 gal 3.8 L
Engine details ...
Toro Suburban 7 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Wheelbase
38.5 inches 97 cm
Weight
312 to 366 pounds
Front tire
13x5.00-6
Rear tire
16x6.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
Suburban 7 references literature
Toro 1967
Home Utility Tractors published in 1967, by Toro
Lawn Tractor and Riders published in 1968, by Toro
The "Worth" Mower published in 1968, by Toro
Lawn Tractors - Riding Mowers - Suburban Tractors published in 1968, by Toro
Operator's Manual Compact Suburban Tractor 7 HP (215-67A) published in 1967
Operator's Manual Compact Suburban Tractor 7 HP (215-68) published in 1968

Engine

Engine Detail — 275 cc / 16.79 ci Gasoline

Manufacturer
Briggs & Stratton 170402
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
275 cc 16.79 ci
Bore/Stroke
3.00x2.375 inches 76 x 60 mm
Power (gross)
7 hp 5.2 kW
Fuel system
carburetor
Starter
recoil
electric *Optional. Electric start on models 55100 and 55101.
Starter volts
12
Oil change
25 h

Transmission

Transmission — Peerless 600

Transmission
Peerless 600
Type
belt-driven gear
Gears
3 forward and 1 reverse
Clutch
mechanical idler pulley
Suburban 7 600 belt-driven gear speeds

Dimensions

Toro Suburban 7 Tires
Lawn/turf front
13x5.00-6
Lawn/turf rear
16x6.50-8
Dimensions
Wheelbase
38.5 inches 97 cm
Length
56 inches 142 cm
Width
33.5 inches 85 cm
Height
35 inches 88 cm
Weight
312 lbs (recoil) 141 kg
366 lbs (electric) 166 kg

Attachments

Attachment overview
32" mid-mount mower deck
Snowblower
32" Mower deck
Type
mid-mount Toro
2-blade with manual lift
Cutting width
32 inches 81 cm
Drive
belt
Cut height
1.5 to 3.5 inch 3 to 8 cm
Cut positions
5

Photos

Toro Suburban 7, right side.

Toro Suburban 7, right side.

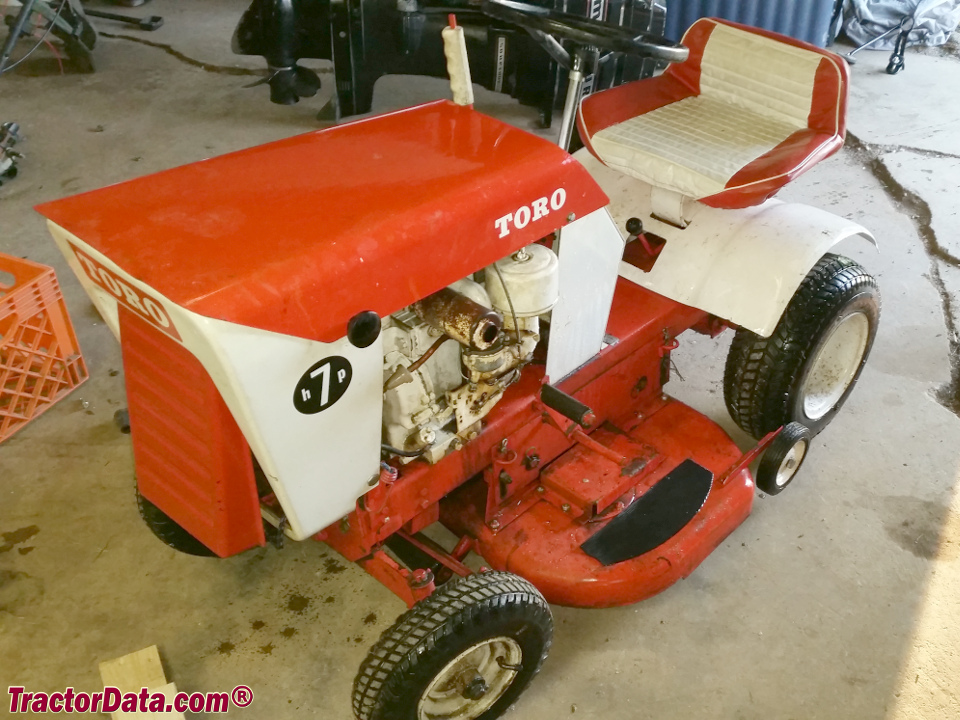

Toro Suburban 7, left side.

Toro Suburban 7, left side.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Suburban 7.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Toro Lawn Tractors Toro Suburban 7 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Suburban 7.

Converted Equivalents:

Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
