Toro Suburban 8 55200
The Toro Suburban 8 55200 is a tractor produced by Toro Lawn Tractors. It is equipped with a 305 cc 18.64 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: Peerless 1700. Drive type: belt.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Drive & Traction
belt
Fuel & Capacities
Gasoline
Transmission
Peerless 1700
Overview
 | 1967
Suburban Compact SeriesGarden tractor
Suburban Compact Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Garden tractor | |
Original price was $880 in 1967 | |
Toro Suburban 8 Engine | |
|---|---|
8HP Kohler 305cc 1-cyl gasoline | |
Engine details ...  |
Toro Suburban 8 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Front tire | 4.80-8 |
Rear tire | 6.00-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | starter-generator |
Battery volts | 12 |

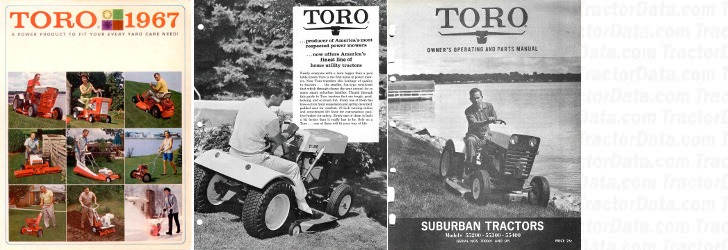

References | |
|---|---|
 | |
Toro 1967 | |
Home Utility Tractors published in 1967, by Toro | |
Operator's Manual Suburban Tractors (172-67) published in 1966 |
Engine
Engine Detail — 305 cc / 18.64 ci Gasoline
Manufacturer | Kohler K181S |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 305 cc
18.64 ci |
Bore/Stroke | 2.9375x2.75 inches
75 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 1700
Transmission | Peerless 1700 |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Clutch | mechanical idler pulley |
Dimensions
Toro Suburban 8 Tires | |
|---|---|
Lawn/turf front | 4.80-8 |
Lawn/turf rear | 6.00-12 |
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
42" Mower deck | |
|---|---|
Type | mid-mount Toro 59004 |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Drive | belt |
Cut height | 2 to 4 inch
5 to 10 cm |
Cut positions | 5 |
Photos
Toro Suburban 8 55200 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Suburban 8 55200.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Toro Lawn Tractors Toro Suburban 8 55200 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Suburban 8 55200.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
