Troy-Bilt 13040

The Troy-Bilt 13040 is a tractor produced by Troy Bilt Lawn Tractors. It is equipped with a 569 cc 34.75 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: Eaton 851. Operating weight: 500 lbs 226 kg.

Overview

	1993 - 1996 Garden tractor
1993 - 1996
Garden tractor

Production
Manufacturer	Troy-Bilt
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $4,400 in 1994

Troy-Bilt 13040 Engine
18HP Vanguard 569cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Troy-Bilt 13040 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49.75 inches 126 cm
Weight	500 lbs 226 kg
Front tire	16x6.50-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	280
Battery volts	12

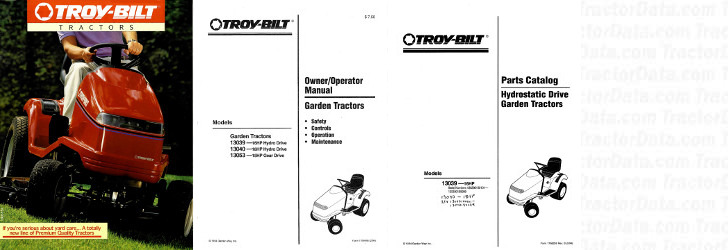

References
Tractors published in 1995, by Troy-Bilt
Owner/Operator Manual Models 13039, 13040, 13053 (1769946) published in 1994
Parts Catalog Models 13039, 13040 (1768259) published in 1994

Engine

Engine Detail — 569 cc / 34.75 ci Gasoline

Manufacturer	Vanguard 350777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	569 cc 34.75 ci
Bore/Stroke	2.83x2.75 inches 72 x 70 mm
Power	18 hp 13.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Eaton 851

Transmission	Eaton 851
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Troy-Bilt 13040 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	49.75 inches 126 cm
Length	72 inches 182 cm
Width	38 inches 96 cm
Height	45 inches 114 cm
Shipping weight	500 lbs 226 kg

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
The tractor was compatible with the Troy-Bilt model 14038 29-inch belt-drive tiller.
