Upton 180

The Upton 180 is a tractor produced by Upton. It is equipped with a 302 ci 4.9 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 21 forward and 9 reverse. Operating weight: 18500 lbs 8391 kg.

Engine Power
Diesel (listed): 180 hp / 134.2 kW
Fuel & Capacities
Diesel
Transmission
21 forward and 9 reverse
Operating Weight
18500 lbs 8391 kg

Overview

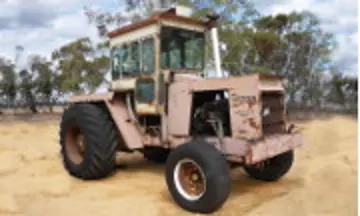

Upton 180 tractor photo
Standard-tread tractor
Standard-tread tractor
Production
Manufacturer
Upton
Standard-tread tractor
Built in Corowa, New South Wales, Australia
Upton 180 Engine
Nissan 4.9L 4-cyl diesel
Engine details ...
Upton 180 Transmission
21-speed
Transmission details ...
Upton 180 Power
Engine
180 hp 134.2 kW
Mechanical
Two-wheel drive
Hydraulics
Pressure
2500 psi 172.4 bar
Total flow
20 gpm 75.7 lpm
Dimensions & Tires
Weight
18500 lbs 8391 kg
Front tire
11.00x16
Rear tire
18.4x34
Full dimensions and tires ...

Engine

Engine Detail — 302 ci / 4.9 L Diesel

Manufacturer
Nissan UD43
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Two-stroke diesel engine.
Displacement
302 ci 4.9 L
Bore/Stroke
4.33x5.118 inches 110 x 130 mm
Power
180 hp 134.2 kW
Compression
16:1
Rated RPM
2400
Torque
458 lb-ft 621.0 Nm
Torque RPM
1400

Transmission

Transmission — 21 forward and 9 reverse

Gears
21 forward and 9 reverse
The Upton 180 used military-surplus gear boxes. The first gearbox offered four-forward and one-reverse speed. The second gearbox offered five-forward and one-reverse gear. This arrangement offered 21 forward and nine reverse gear combinations. The original rear gearbox was a Spicer from the LVT-4 landing craft. Later, Mack gearboxes from the M3 tank were used.

Dimensions

Upton 180 Tires
Ag front
11.00x16
Ag rear
18.4x34
18.4x38
Dimensions
Length
180 inches 457 cm
Width
153.75 inches 390 cm
Height
88 inches 223 cm
Weight
18500 lbs 8391 kg
Ground clearance
16 inches 40 cm

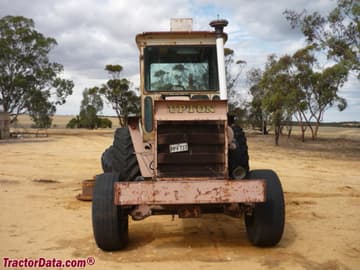

Photos

Upton 180

Upton 180

Upton 180

Upton 180

Upton 180

Upton 180

Upton 180

Upton 180

Upton 180

Upton 180

Recommended Implements & Sizing Guide

Engineering recommendations for Upton 180 based on its 180 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Upton 180.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Upton 180 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Upton 180.

Converted Equivalents:

Horsepower (HP)180 hp
Kilowatts (kW)134.2 kW
Metric Horsepower (PS / CV)182.5 PS

Direct Competitor Comparison

Compare Upton 180 against same-era industry alternatives in the same horsepower class.

Current Model
Upton

Upton 180

Engine Power:Diesel (listed): 180 hp / 134.2 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 1486

Engine Power:162.2
Production Years:1976 - 1981
DeereMarket Competitor

Deere 6R 165

Engine Power:162.3
Production Years:2022 - 2026
Massey FergusonMarket Competitor

Massey Ferguson 6S.165

Engine Power:162.3
Production Years:2022 - 2026
FordMarket Competitor

Ford FW-25

Engine Power:163
Production Years:1986 - 1988
