Upton HT-14/350

The Upton HT-14/350 is a tractor produced by Upton. It is equipped with a 855 ci 14.0 L engine. The listed engine power is Diesel (listed): 350 hp / 261.0 kW. Transmission: Spicer. Operating weight: 40,480 lbs 18361 kg.

Engine Power
Diesel (listed): 350 hp / 261.0 kW
Fuel & Capacities
350 gal 1324.8 L
Transmission
Spicer
Operating Weight
51,000 lbs 23133 kg

Overview

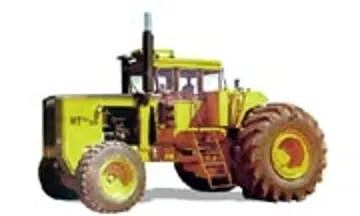

Upton HT-14/350 tractor photo
1978 Standard-tread tractor
Production
Manufacturer
Upton
Standard-tread tractor
Built in Corowa, New South Wales, Australia
Total built
1
Original price
$70,000 (1978)
The Upton HT-14/350 is one of the largest two-wheel drive tractors ever built. The rear axle has a 65,000 pound capacity and the tractor is was originally equipped with 20-ply earthmover tires. Over 80% of its 25-ton weight was carried on the rear.
Upton HT-14/350 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Upton HT-14/350 Transmission
14-speed
Transmission details ...
Upton HT-14/350 Power
Engine
350 hp 261.0 kW
Mechanical
Two-wheel drive
Westinghouse drums brakes
Cab standard with air-conditioning and stereo.
Capacity
Fuel
350 gal 1324.8 L
Hydraulic system
56 gal 212.0 L
Hydraulics
Capacity
56 gal 212.0 L
Pressure
2031 psi 140.0 bar
Total flow
48.08 gpm 182.0 lpm
Dimensions & Tires
Wheelbase
154 inches 391 cm
Weight
40480 to 51000 pounds
Front tire
18.4x26
Rear tire
33.5x33
Full dimensions and tires ...

Engine

Engine Detail — 855 ci / 14.0 L Diesel

Manufacturer
Cummins NTC-350
Configuration
aftercooled turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
855 ci 14.0 L
Bore/Stroke
5.50x6.00 inches 140 x 152 mm
Power
350 hp 261.0 kW
Compression
14:1
Rated RPM
2100

Transmission

Transmission — Spicer

Transmission
Spicer
Gears
14 forward and 4 reverse

Dimensions

Upton HT-14/350 Tires
Ag front
18.4x26
Ag rear
33.5x33
Dimensions
Wheelbase
154 inches 391 cm
Length
258 inches 655 cm
Width
141 inches 358 cm
Height
137 inches 347 cm
Weight
40,480 lbs 18361 kg
Operating weight
51,000 lbs 23133 kg
Ground clearance
19 inches 48 cm

Photos

Upton HT-14/350 tractor photo

Upton HT-14/350 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Upton HT-14/350 based on its 350 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁Commercial / Field ScaleHigh horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙Commercial / Field ScaleBroad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Upton HT-14/350.

Estimated Continuous Field Runtime: 19.2 hrs

Approximately 19.2 hours of continuous field operation at ~75% rated power on a full tank (350 gal / 1324.9 L).

Estimated 75% Load Fuel Burn~18.2 gal/hr (68.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Upton HT-14/350 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Upton HT-14/350.

Converted Equivalents:

Horsepower (HP)350 hp
Kilowatts (kW)261 kW
Metric Horsepower (PS / CV)354.9 PS

Direct Competitor Comparison

Compare Upton HT-14/350 against same-era industry alternatives in the same horsepower class.

Current Model
Upton

Upton HT-14/350

Engine Power:Diesel (listed): 350 hp / 261.0 kW
★ Baseline Reference
ClaasMarket Competitor

Claas 3000

Engine Power:315
Production Years:1999 - 2004
Deutz-FahrMarket Competitor

Deutz-Fahr 9340 TTV

Engine Power:316
Production Years:2015 - 2025
Massey FergusonMarket Competitor

Massey Ferguson 4880

Engine Power:320
Production Years:1978 - 1983
DeereMarket Competitor

Deere 8320R

Engine Power:320
Production Years:2014 - 2019
