Ursus 1014

The Ursus 1014 is a tractor produced by Ursus. It is equipped with a 278.4 ci 4.6 L engine. The rated power output is 96 hp 71.6 kW. Transmission: 16 forward and 8 reverse. Operating weight: 8,974 lbs 4070 kg.

Overview

	1984 - 2009	1984 - 2009

Production
Manufacturer	Ursus
Built in Warsaw, Poland

Ursus 1014 Engine
4.6L 4-cyl diesel
Fuel tank	23.8 gal 90.1 L
Engine details ...

Ursus 1014 Transmission
16-speed two-speed power shift
Transmission details ...

Ursus 1014 Power
Engine	96 hp 71.6 kW
PTO (claimed)	84 hp 62.6 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic dry disc brakes
Cab standard with heater.

Hydraulics
Pump flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear Type	II
Rear lift	6725 lbs 3050 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1890
	1000@1920

Dimensions & Tires
Wheelbase	94 inches 238 cm
Weight	8,974 lbs 4070 kg
Front tire	11.00-16
2WD Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	42
Batteries	2
Battery volts	6
Battery AH	190

Engine

Engine Detail — 278.4 ci / 4.6 L Diesel

Manufacturer	Z8002.1
Configuration	turbocharged diesel, 4-cylinder
Displacement	278.4 ci 4.6 L
Bore/Stroke	4.33x4.72 inches 110 x 120 mm
Power	96 hp 71.6 kW
Compression	17:1
Rated RPM	2200
Torque	247.8 lb-ft 336.0 Nm
Torque RPM	1600
Starter volts	12

Transmission

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	350mm dry disc

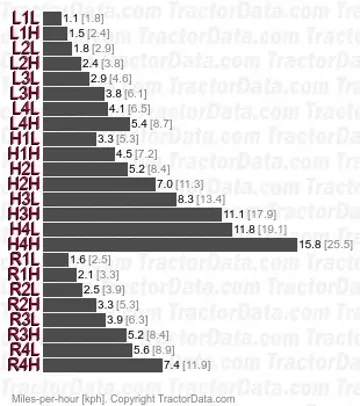

Four gears (1-4) in two ranges (low/high), plus reverse range, with two-speed hydraulic power shift.
With 18.4-34 rear tires.

Dimensions

Ursus 1014 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 18.4-34
4WD Standard tires (ag)	Front: 12.4-24. Rear: 18.4-34

Dimensions
Wheelbase	94 inches 238 cm
Length	156 inches 396 cm
Height	106 inches 269 cm
Weight	8,974 lbs 4070 kg

Photos

Ursus 1014 tractor photo
