Ursus 914

The Ursus 914 is a tractor produced by Ursus. It is equipped with a 278.4 ci 4.6 L engine. The listed engine power is Diesel (listed): 80 hp / 59.7 kW; Diesel (listed): 4 hp / 3.0 kW; Diesel (listed): 100 hp / 74.6 kW. Transmission: 16 forward and 8 reverse. Drive type: 4x4 4WD. Operating weight: 9744 lbs 4419 kg.

Overview

	1984 - 1998

Production
Manufacturer	Ursus
Built in Warsaw, Poland
The Ursus 914 is similar to the Zetor 8145.

Variants
912	2WD
914	4WD

Ursus 914 Transmission
16-speed two-speed power shift
Transmission details ...

Ursus 914 Power
Engine	100 hp 74.6 kW
PTO (claimed)	64 hp 47.7 kW

Mechanical
Drive	4x4 4WD
Differential lock	mechanical rear, front optional
Power steering
Hydraulic dry disc brakes
Trailer brakes	pneumatic OptOptional

Capacity
Fuel	23.8 gal 90.1 L
Hydraulic system	12.15 gal 46.0 L

Hydraulics
Capacity	12.15 gal 46.0 L
Pressure	2321 psi 160.0 bar
Pump flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	9094 lbs 4125 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1890
	1000@1920
Front PTO Type	1000 OptOptional

Dimensions & Tires
Wheelbase	93.9 inches 238 cm
Weight	9744 lbs 4419 kg
Front tire	12.4-24
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	55
Charging volts	12
Batteries	2
Battery volts	6
Battery AH	190

Engine

Engine options
Zetor 4.6L 4-cyl diesel
4.6L 4-cyl diesel

Engine Detail — 278.4 ci / 4.6 L Diesel

Manufacturer	Zetor Z8401.1
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	278.4 ci 4.6 L
Bore/Stroke	4.33x4.72 inches 110 x 120 mm
Power	80 hp 59.7 kW
Fuel system	direct injection
Air cleaner	oil bath
Rated RPM	2200
Torque	197.7 lb-ft 268.1 Nm
Torque RPM	1450
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	10.6 qts 10.0 L
Coolant capacity	24.3 qts 23.0 L
	26 qts*With deluxe cab heater. 24.6 L

Engine Detail — 278.4 ci / 4.6 L Diesel

Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	278.4 ci 4.6 L
Bore/Stroke	4.33x4.72 inches 110 x 120 mm
Power	100 hp 74.6 kW
Rated RPM	2200
Torque	320 lb-ft 433.9 Nm
Torque RPM	1650

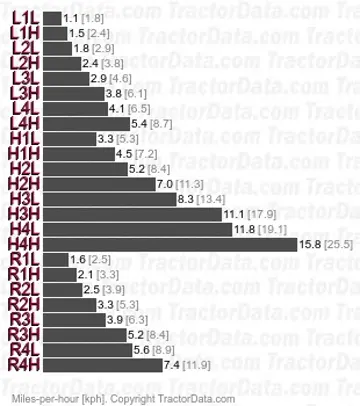

Transmission

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	350mm dry disc
Oil capacity	48.6 qts 46.0 L
Four gears (1-4) in two ranges (low/high), plus reverse range, with two-speed hydraulic power shift.
With 18.4-34 rear tires.

Dimensions

Ursus 914 Tires
Ag front	12.4-24
Ag rear	18.4-34

Dimensions
Wheelbase	93.9 inches 238 cm
Length	163.8 inches 416 cm
Width	77.6 inches*Minimum width 197 cm
Height (cab)	103.2 inches 262 cm
Weight	9744 lbs 4419 kg
Ballasted weight	11244 lbs 5100 kg
Ground clearance	15 inches 38 cm
Front tread	59.5/63.4/67.3/71.3 inches 151/161/170/181 cm
Rear tread	59.1/62/65/67.9/70.9/73.8 inches 150/157/165/172/180/187 cm

Photos

Ursus 914
