Ursus 1234
The Ursus 1234 is a tractor produced by Ursus. It is equipped with a 416.4 ci 6.8 L engine. The rated power output is 117.5 hp 87.6 kW. Transmission: 16 forward and 8 reverse. Operating weight: 11244 lbs 5100 kg.
Engine Power
117.5 hp
87.6 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
16 forward and 8 reverse
Operating Weight
11244 lbs
5100 kg
Ursus 1234 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 2009
30 Series |
|---|---|
1991 - 2009 | |
30 Series | |
Production | |
|---|---|
Manufacturer | Ursus |
Built in Warsaw, Poland | |
Variants | |
|---|---|
1232 | 2WD |
1234 | 4WD |
Ursus 1234 Engine | |
|---|---|
Zetor 6.8L 6-cyl diesel | |
Engine details ...  |
Ursus 1234 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
Ursus 1234 Power | |
|---|---|
Engine | 117.5 hp
87.6 kW |
PTO (claimed) | 102.9 hp
76.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Dry disc brakes | |
Cab standard with heat. | |
Capacity | |
|---|---|
Fuel | 34.3 gal
129.8 L |
44.9 gal*With optional 40L secondary fuel tank.
169.9 L | |
Hydraulic system | 12.15 gal
46.0 L |
Hydraulics | |
|---|---|
Capacity | 12.15 gal
46.0 L |
Pump flow | 10.8 gpm
40.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
III OptOptional | |
Control | position and draft control |
Rear lift | 12125 lbs
5499 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1890 |
1000@1920 | |
Front PTO | 1000 OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 106.5 inches
270 cm |
Weight | 11244 lbs
5100 kg |
Front tire | 14.9-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
Charging volts | 12 |
Batteries | 2 |
Battery volts | 12 |
Battery AH | 135 |
Engine
Engine Detail — 416.4 ci / 6.8 L Diesel
Manufacturer | Zetor Z 8701.12 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 416.4 ci
6.8 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 117.5 hp
87.6 kW |
Fuel system | direct injection |
Air cleaner | oil bath |
Compression | 17:1 |
Rated RPM | 2200 |
Torque | 304.2 lb-ft
412.5 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 24 |
Starter power | 7.5 hp
5.6 kW |
Oil capacity | 20.1 qts
19.0 L |
Coolant capacity | 27.5 qts
26.0 L |
Transmission
Transmission — 16 forward and 8 reverse two-speed power shift
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | 380mm hydraulic dry disc |
Oil capacity | 48.6 qts
46.0 L |

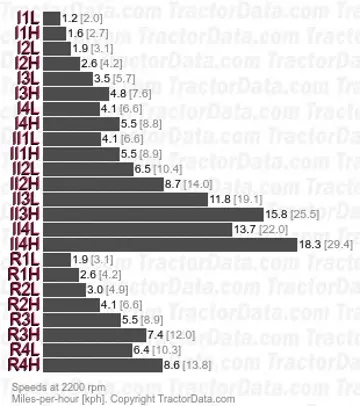

Four gears (1-4) in two ranges (I/II) plus reverse range (R) with two-speed power shift. | |
With 18.4-34 rear tires. | |
 | |
Dimensions
Ursus 1234 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 106.5 inches
270 cm |
Length | 177 inches
449 cm |
Width | 89.3 inches
226 cm |
Height (cab) | 115.4 inches
293 cm |
Height (exhaust) | 118 inches
299 cm |
Weight | 11244 lbs
5100 kg |
Ballasted weight | 12699 lbs
5760 kg |
Ground clearance | 17 inches
43 cm |
Front tread | 67.3/71.3 inches
170/181 cm |
Rear tread | 65/67.9/70.9/73.8 inches
165/172/180/187 cm |
Photos
Ursus 1234 tractor photo
