Ursus 3502

The Ursus 3502 is a tractor produced by Ursus. It is equipped with a 152.7 ci 2.5 L engine. The listed engine power is Diesel (listed): 46.4 hp / 34.6 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 12 forward and 4 reverse. Operating weight: 3990 lbs 1809 kg.

Overview

	Orchard/Vineyard tractor	Orchard/Vineyard tractor

Production
Manufacturer	Ursus
Orchard/Vineyard tractor
Built in Warsaw, Poland

Ursus 3502 Engine
Ursus 2.5L 3-cyl diesel
Engine details ...

Ursus 3502 Power
Engine	46.4 hp 34.6 kW
PTO (claimed)	41.3 hp 30.8 kW

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical drum brakes
Two-post mid-mount folding ROPS.

Capacity
Fuel	15.3 gal 57.9 L
Hydraulic system	11.1 gal 42.0 L
Steering	1.9 qts 1.8 L

Hydraulics
Capacity	11.1 gal 42.0 L
Pressure	2321 psi 160.0 bar
Pump flow	6.9 gpm 26.1 lpm
Steering cap.	1.9 qts 1.8 L

Tractor hitch
Rear Type	II
Control	Position and draft control
Rear lift	2932 lbs 1329 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
Engine RPM	540@1893

Dimensions & Tires
Wheelbase	82 inches 208 cm
Weight	3990 lbs 1809 kg
Front tire	6.00-16
Rear tire	12.4-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	44
Charging volts	12
Battery volts	12
Battery AH	90

Engine

Engine Detail — 152.7 ci / 2.5 L Diesel

Manufacturer	Ursus 3250
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	152.7 ci 2.5 L
Bore/Stroke	3.60x5.00 inches 91 x 127 mm
Power	46.4 hp 34.6 kW
Fuel system	direct injection
Air cleaner	oil bath
Pre-heating	glow plugs
Compression	16.5:1
Rated RPM	2250
Torque	121.7 lb-ft 165.0 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	7.2 qts 6.8 L
Coolant capacity	10.8 qts 10.2 L

Transmission

Transmission options
8-speed
12-speed creeper

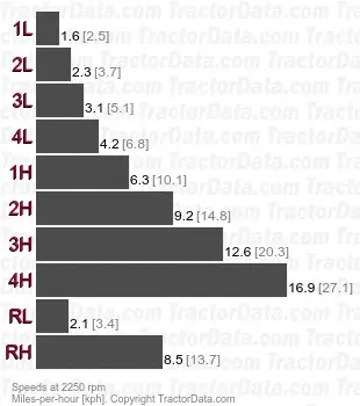

Transmission — 8 forward and 2 reverse

Gears	8 forward and 2 reverse
Clutch	305mm dry disc
Oil capacity	44.4 qts 42.0 L
Four gears, plus reverse, in two ranges.
With 12.4-28 rear tires.

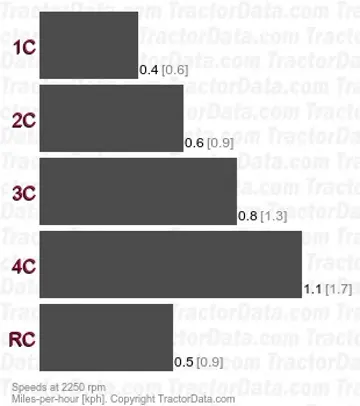

Transmission
Type	creeper
Gears	12 forward and 4 reverse

Dimensions

Ursus 3502 Tires
Standard tires (ag)	Front: 6.00-16. Rear: 12.4-28

Dimensions
Wheelbase	82 inches 208 cm
Length	134.4 inches 341 cm
Width	50 inches 127 cm
Height (steering wheel)	56.1 inches 142 cm
Height (ROPS)	95.7 inches 243 cm
Weight	3990 lbs 1809 kg
Ballasted weight	4938 lbs 2239 kg
Clearance (rear axle)	10.5 inches 26 cm
Clearance (drawbar)	6.7 inches 17 cm
Front tread	40.9 inches 103 cm
Rear tread	38.8 inches 98 cm

Photos

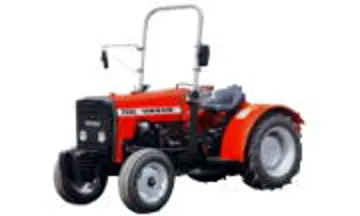

Ursus 3502 tractor photo
