UTB/Universal 450
The UTB/Universal 450 is a tractor produced by Utb Universal. It is equipped with a 142.8 ci 2.3 L engine. Transmission: 8 forward and 2 reverse. Operating weight: 3850 to 5263 pounds.
Fuel & Capacities
14.3 gal
54.1 L
Transmission
8 forward and 2 reverse
Operating Weight
3850 to 5263 pounds
Overview
 | Utility tractor | Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | UTB/Universal |
Utility tractor | |
UTB/Universal 450 Engine | |
|---|---|
Uzina 2.3L 3-cyl diesel | |
Fuel tank | 14.3 gal
54.1 L |
Engine details ...  | |
UTB/Universal 450 Power | |
|---|---|
PTO (claimed) | 41.9 hp (max)
31.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Power steering | |
Mechanical band brakes | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2133 psi
147.1 bar |
Pump flow | 10 gpm
37.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 2650 lbs
1202 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2160 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 75.8 inches
192 cm |
4WD Wheelbase | 78 inches
198 cm |
Weight | 3850 to 5263 pounds |
Front tire | 6.50x16 |
2WD Rear tire | 14.9x28 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Universal Tractors published in 1987 |
Engine
Engine Detail — 142.8 ci / 2.3 L Diesel
Manufacturer | Uzina |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 142.8 ci
2.3 L |
Bore/Stroke | 3.74x4.33 inches
95 x 110 mm |
Compression | 17:1 |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 9.6 qts
9.1 L |
Coolant capacity | 12.3 qts
11.6 L |
Transmission
Transmission options | |
|---|---|
8-speed shuttle | |
8-speed partially synchronized |
Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | 279.4mm dry disc |
Oil capacity | 17.6 qts
16.7 L |
With 14.9x28 rear tires. | |
 | |

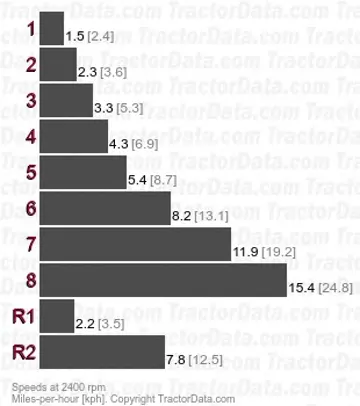

Transmission — 8 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and 2 reverse |
Clutch | 279.4mm dry disc |
With 14.9x28 rear tires. | |
 | |
Dimensions
UTB/Universal 450 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.50x16. Rear: 14.9x28 |
4WD Standard tires (ag) | Front: 9.50x20. Rear: 14.9x28 |
Lawn/turf front | 7.50x16 |
Lawn/turf rear | 18.4x16A |
Dimensions | |
|---|---|
2WD Wheelbase | 75.8 inches
192 cm |
4WD Wheelbase | 78 inches
198 cm |
2WD Length | 116.5 inches
295 cm |
4WD Length | 122.5 inches
311 cm |
2WD Weight | 3850 lbs
1746 kg |
4WD Weight | 5263 lbs
2387 kg |
2WD Ground clearance | 18.5 inches
46 cm |
4WD Ground clearance | 15.5 inches
39 cm |
2WD Front tread | 50 to 77 inches
127 to 195 cm |
4WD Front tread | 55.3 inches
140 cm |
Rear tread | 47 to 75 inches
119 to 190 cm |
UTB/Universal 450 Height | |
|---|---|
2WD Hood | 54 inches
137 cm |
4WD Hood | 57.3 inches
145 cm |
2WD ROPS | 90.5 inches
229 cm |
4WD ROPS | 91 inches
231 cm |
