UTB/Universal 1033

The UTB/Universal 1033 is a tractor produced by Utb Universal. It is equipped with a 344.2 ci 5.6 L engine. The listed engine power is Diesel (listed): 99 hp / 73.8 kW. Transmission: 16 forward and 4 reverse. Operating weight: 9700 lbs 4399 kg.

Overview

	1994 - 2004 3 Series

Production
Manufacturer	UTB/Universal
Built in Brasov, Romania

UTB/Universal 1033 Engine
UTB 5.6L 6-cyl diesel
Fuel tank	34.34 gal 130.0 L
	47.55 gal (late) 180.0 L
Engine details ...

UTB/Universal 1033 Transmission
16-speed
Transmission details ...

UTB/Universal 1033 Power
Engine	99 hp 73.8 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Cab standard.

Hydraulics
Pump flow	10.6 gpm 40.1 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	100.4 inches 255 cm
Weight	9700 lbs 4399 kg
Front tire	12.4R28
Rear tire	16.9R38
Full dimensions and tires ...

Engine

Engine Detail — 344.2 ci / 5.6 L Diesel

Manufacturer	UTB D261.073
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	344.2 ci 5.6 L
Bore/Stroke	4.33x4.53 inches 110 x 115 mm
Power	99 hp 73.8 kW
Rated RPM	2400
Torque	272.2 lb-ft 369.1 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission — 16 forward and 4 reverse

Gears

16 forward and 4 reverse

Dimensions

UTB/Universal 1033 Tires
Ag front	12.4R28
Ag rear	16.9R38

Dimensions
Wheelbase	100.4 inches 255 cm
Length	173.2 inches 439 cm
Height	112.2 inches 284 cm
Weight	9700 lbs 4399 kg

Photos

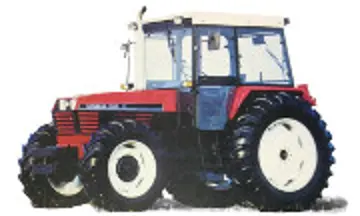

UTB/Universal 1033 tractor photo
