UTB/Universal S445

The UTB/Universal S445 is a tractor produced by Utb Universal. It is equipped with a 142.8 ci 2.3 L engine. The listed engine power is Diesel (listed): 4 hp / 3.0 kW. Transmission: 6 forward and 2 reverse. Drive type: crawler. Operating weight: 5600 lbs 2540 kg.

Overview

	1972 - 1981 Agricultural Crawler tractor

Production
Manufacturer	UTB/Universal
Agricultural Crawler tractor
Built in Brasov, Romania

Variants
SV445	narrow
S445	standard
SM445	wide-track
U445	wheeled tractor

UTB/Universal S445 Engine
UTB 2.3L 3-cyl diesel
Fuel tank	14.3 gal 54.1 L
Engine details ...

UTB/Universal S445 Transmission
6-speed constant mesh
Transmission details ...

UTB/Universal S445 Power
PTO (claimed)	42 hp 31.3 kW

Mechanical
Drive	crawler
Band brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2475 psi 170.7 bar
Pump flow	5.8 gpm 22.0 lpm

Tractor hitch
Rear Type	II/I
Rear lift	2650 lbs 1202 kg

Power Take-off (PTO)
Rear PTO Type	540
Engine RPM	540@1970

Dimensions & Tracks
Wheelbase	51.9 inches 131 cm
Weight	5600 lbs 2540 kg
9.8-inch tracks
Full dimensions and tracks ...

Electrical
Charging system	alternator
Battery volts	12

References

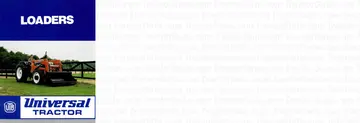

Loaders published in 1987, by Universal

Engine

Engine Detail — 142.8 ci / 2.3 L Diesel

Manufacturer	UTB
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	142.8 ci 2.3 L
Bore/Stroke	3.74x4.33 inches 95 x 110 mm
Fuel system	direct injection
Compression	17:1
Rated RPM	2400
Torque	112 lb-ft 151.9 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW

Transmission

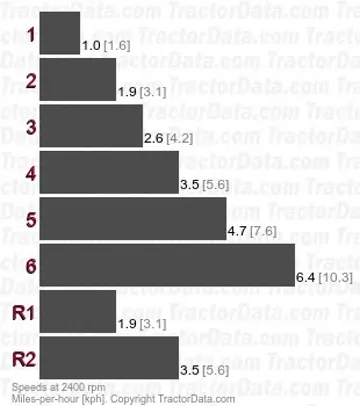

Transmission — 6 forward and 2 reverse constant mesh

Type	constant mesh
Gears	6 forward and 2 reverse
Clutch	254mm dry discs

Dimensions

UTB/Universal S445 Tracks
SV445 width	9.8 inches 24 cm
S445 width	12.2 inches 30 cm
SM445 width	14.2 inches 36 cm

Dimensions
Wheelbase	51.9 inches 131 cm
Length	114.2 inches 290 cm
Weight	5600 lbs 2540 kg

Photos

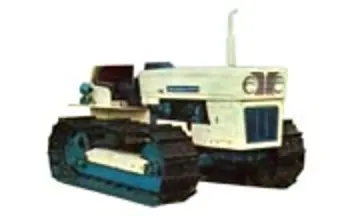

UTB/Universal S445 tractor photo
