Ventrac 7200
The Ventrac 7200 is a tractor produced by Ventrac Lawn Tractors. The listed engine power is Diesel (listed): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Drive type: 4x2 2WD front-wheel drive. Operating weight: 1600 lbs 725 kg.
Engine Power
Diesel (listed): 21 hp / 15.7 kW
Drive & Traction
4x2 2WD front-wheel drive
Fuel & Capacities
12 gal
45.4 L
Transmission
infinite forward and reverse
Operating Weight
1600 lbs
725 kg
Overview
 | 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Production | |
|---|---|
Manufacturer | Ventrac |
Total built | 22 |
Ventrac 7200 Engine | |
|---|---|
21HP Briggs & Stratton 3-cyl diesel | |
Fuel tank | 12 gal
45.4 L |
Engine details ...  | |
Ventrac 7200 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | 4x2 2WD front-wheel drive |
Two-post folding ROPS. | |
Tractor hitch | |
|---|---|
Type | Ventrac Minute Mount |
Dimensions & Tires | |
|---|---|
Wheelbase | 55 inches
139 cm |
Weight | 1600 lbs
725 kg |
Front tire | 24x12x12 |
Rear tire | 18x9.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Battery CCA | 450 |
Battery volts | 12 |
Engine
| 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Engine Detail — Diesel
Manufacturer | Briggs & Stratton DM950DT |
Configuration | turbocharged diesel, 3-cylinder, liquid-cooled |
Power | 21 hp
15.7 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Ventrac 7200 Tires | |
|---|---|
Lawn/turf front | 24x12x12 |
Lawn/turf rear | 18x9.5-8 |
Dimensions | |
|---|---|
Wheelbase | 55 inches
139 cm |
Length | 81 inches
205 cm |
Width | 54 inches
137 cm |
Height | 78 inches
198 cm |
Weight | 1600 lbs
725 kg |
Photos

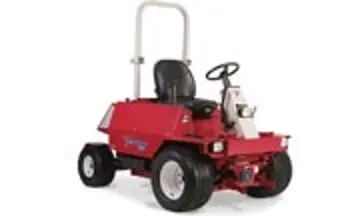

Ventrac 7200 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Ventrac Lawn Tractors Ventrac 7200 based on its 21 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ventrac Lawn Tractors Ventrac 7200.
Estimated Continuous Field Runtime: 11 hrs
Approximately 11 hours of continuous field operation at ~75% rated power on a full tank (12 gal / 45.4 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ventrac Lawn Tractors Ventrac 7200 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ventrac Lawn Tractors Ventrac 7200.
Converted Equivalents:
Horsepower (HP)21 hp
Kilowatts (kW)15.7 kW
Metric Horsepower (PS / CV)21.3 PS
