Versatile 265

The Versatile 265 is a tractor produced by Versatile. It is equipped with a 543 ci 8.9 L engine. The rated power output is 260 hp 193.9 kW. Transmission: 16 forward and 4 reverse. Operating weight: 23945 lbs 10861 kg.

Overview

	2018 - Row-Crop tractor
2018 -
Row-Crop tractor

Production
Manufacturer	Versatile (a part of Rostselmash)
Row-Crop tractor
Built in Winnipeg, Manitoba, Canada

Versatile 265 Engine
Cummins 8.9L 6-cyl diesel
Fuel tank	170 gal 643.5 L
Engine details ...

Versatile 265 Transmission
16-speed power shift
Transmission details ...

Versatile 265 Power
Engine	260 hp 193.9 kW

Mechanical
Four-wheel drive
Power steering
Cab standard with air-conditioning.

Hydraulics
Type	closed-center load sensing
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	55 gpm 208.2 lpm
	75 gpm*With optional Hi-Flow system. 283.9 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift	18850 lbs 8550 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	124.6 inches 316 cm
Weight	23945 lbs 10861 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Charging volts	12
Batteries	2
Battery volts	12

Engine

Engine Detail — 543 ci / 8.9 L Diesel

Manufacturer	Cummins QSL9
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	543 ci 8.9 L
Bore/Stroke	4.49x5.69 inches 114 x 145 mm
Emissions	Tier IV
Power	260 hp 193.9 kW
Maximum Power	296 hp 220.7 kW
Torque	945 lb-ft 1281.4 Nm
Torque RPM	1500
Starter type	electric

Transmission

Transmission — 16 forward and 4 reverse power shift

Type	power shift
Gears	16 forward and 4 reverse

Dimensions

Versatile 265 Tires

Dimensions
Wheelbase	124.6 inches 316 cm
Length	252 inches 640 cm
Height (cab)	132 inches 335 cm
Weight	23945 lbs 10861 kg
Max weight	27510 lbs 12478 kg
Rear axle	4.3 inch diameter 109 mm
Rear tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 132 inches 152 to 335 cm

Photos

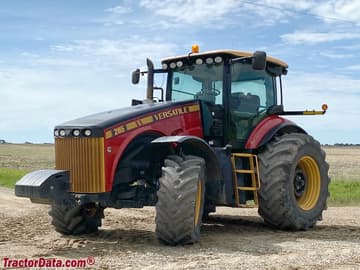

Versatile 265, left side.

Versatile 265. right side.
