Versatile 280

The Versatile 280 is a tractor produced by Versatile. It is equipped with a 506 ci 8.3 L engine. The listed engine power is Diesel (listed): 280 hp / 208.8 kW. Transmission: power shift. Operating weight: 17700 to 20050 pounds.

Overview

	2009 - 2014 Model year 2009-20112012-2014 Row-Crop tractor

Production
Manufacturer	Versatile
Row-Crop tractor
Built in Winnipeg, Manitoba, Canada

Versatile 280 Engine
Cummins 8.3L 6-cyl diesel
Engine details ...

Versatile 280 Transmission
18-speed
Transmission details ...

Versatile 280 Power
Engine	280 hp 208.8 kW
PTO (claimed)	225 hp 167.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Cab standard

Capacity
Fuel	110 gal 416.4 L
Hydraulic system	31 gal 117.3 L

Hydraulics
Type	closed center load sensing
Capacity	31 gal 117.3 L
Pressure	2900 psi 200.0 bar
Valves	3 to 4
Total flow	30 gpm 113.6 lpm
	55 gpmOptOptional 208.2 lpm

Tractor hitch
Rear Type	III
Rear lift	15,000 lbs 6804 kg

Dimensions & Tires
Wheelbase	121 inches (standard) 307 cm
	125 inches (Ultra Steer) 317 cm
Weight	17700 to 20050 pounds
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	130
	160 OptOptional
Batteries	2
Battery CCA	950
Battery volts	12

Engine

Engine Detail — 506 ci / 8.3 L Diesel

Manufacturer	Cummins QSC
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	506 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Power	280 hp 208.8 kW
Rated RPM	2200
Torque	1000 lb-ft 1356.0 Nm
Torque RPM	1400
Oil capacity	20 qts 18.9 L
Coolant capacity	29 qts 27.4 L

Transmission

Transmission — power shift

Transmission	power shift
Gears	18 forward and 9 reverse

Dimensions

Versatile 280 Tires

Dimensions
Wheelbase	121 inches (standard) 307 cm
	125 inches (Ultra Steer) 317 cm
Length	200 inches (standard) 508 cm
	205 inches (Ultra Steer) 520 cm
Height (cab)	125 inches 317 cm
Height (exhaust)	126 inches 320 cm
Ground clearance	18.6 inches 47 cm

Versatile 280 Weight
Shipping	17,700 lbs (2WD) 8028 kg
	19,150 lbs (4WD) 8686 kg
	20,050 lbs (UltraSteer) 9094 kg

Photos

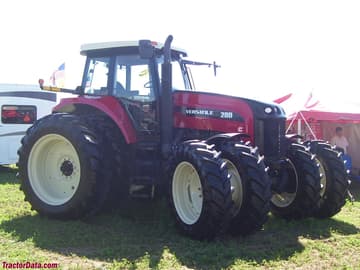

Versatile 280
