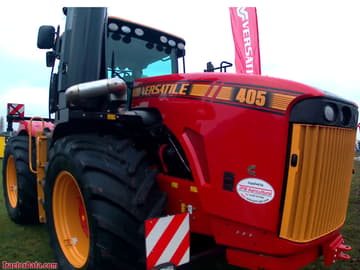

Versatile 405
The Versatile 405 is a tractor produced by Versatile. It is equipped with a 720 ci 11.8 L engine. The listed engine power is Diesel (listed): 400 hp / 298.3 kW. Transmission: Caterpillar TA19. Operating weight: 31500 lbs 14288 kg.
Overview
![]() | 2018 -
Four-wheel Drive (4WD) tractor |
|---|---|
2018 - | |
Four-wheel Drive (4WD) tractor | |
Production | |
|---|---|
Manufacturer | Versatile (a part of Rostselmash) |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
Versatile 405 Engine | |
|---|---|
Cummins 11.8L 6-cyl diesel | |
Fuel tank | 250 gal
946.2 L |
Exhaust fluid (DEF) | 25 gal
94.6 L |
Engine details ... | |
Versatile 405 Transmission | |
|---|---|
16-speed full power shift | |
Transmission details ... |
Versatile 405 Power | |
|---|---|
Engine | 400 hp
298.3 kW |
PTO (claimed) | 320 hp
238.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | outboard planetary |
Hydraulic disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Pressure | 2900 psi
200.0 bar |
Valves | 4 to 6 |
Pump flow | 53 gpm
200.6 lpm |
106 gpm*Optional Hi-Flow
401.2 lpm | |
Tractor hitch | |
|---|---|
Rear Type | IVN/III |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 135 inches
342 cm |
Weight | 31500 lbs
14288 kg |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 200 |
Charging volts | 12 |
Batteries | 3 |
Battery CCA | 1000 |
Battery volts | 12 |
Engine
Engine Detail — 720 ci / 11.8 L Diesel
Manufacturer | Cummins QSG12 |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline |
Displacement | 720 ci
11.8 L |
Bore/Stroke | 5.20x5.66 inches
132 x 144 mm |
Emissions | Tier IV |
Power | 400 hp
298.3 kW |
Maximum Power | 450 hp
335.6 kW |
Rated RPM | 1800 |
Torque | 1450 lb-ft
1966.2 Nm |
Torque RPM | 1400 |
Starter type | electric |
Transmission
Transmission — Caterpillar TA19
Transmission | Caterpillar TA19 |
Type | full power shift |
Gears | 16 forward and 4 reverse |
Dimensions
Versatile 405 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 135 inches
342 cm |
Versatile 405 Weight | |
|---|---|
Shipping | 31500 lbs
14288 kg |
Max capacity | 40000 lbs
18144 kg |
Max Drawbar | 6000 lbs
2721 kg |
9000 lbs*With optional heavy-duty support.
4082 kg | |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Versatile 405 based on its 400 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Versatile 405.
Estimated Continuous Field Runtime: 12 hrs
Approximately 12 hours of continuous field operation at ~75% rated power on a full tank (250 gal / 946.4 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Versatile 405 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Versatile 405.
Converted Equivalents:
Direct Competitor Comparison
Compare Versatile 405 against same-era industry alternatives in the same horsepower class.
Versatile 405
