Volvo T15 Krabat

The Volvo T15 Krabat is a tractor produced by Volvo. It is equipped with a 86.3 ci 1.4 L engine. The rated power output is 26.6 hp 19.8 kW. Transmission: 4 forward and 1 reverse. Operating weight: 2976 lbs 1349 kg.

Overview

	1956 - 1957	1956 - 1957

Production
Manufacturer	Volvo

Volvo T15 Engine
Volvo 1.4L 4-cyl gasoline
Engine details ...

Volvo T15 Transmission
4-speed gear
Transmission details ...

Volvo T15 Power
Engine	26.6 hp 19.8 kW
PTO (claimed)	20.7 hp 15.4 kW

Mechanical
Two-wheel drive
Open operator station.

Capacity
Fuel	10.6 gal 40.1 L
Hydraulic system	6.6 gal 25.0 L

Hydraulics
Type	open center
Capacity	6.6 gal 25.0 L
Pump flow	5.2 gpm 19.7 lpm

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	555@1700

Dimensions & Tires
Wheelbase	75.4 inches 191 cm
Weight	2976 lbs 1349 kg
Front tire	4.00-19
Rear tire	10-28
Full dimensions and tires ...

References
Krabat published in 1956, by Volvo

Engine

Engine Detail — 86.3 ci / 1.4 L Gasoline

Manufacturer	Volvo B14
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	86.3 ci 1.4 L
Bore/Stroke	2.95x3.15 inches 75 x 80 mm
Power	26.6 hp 19.8 kW
Compression	7.3:1
Rated RPM	2500
Operating RPM	1700-2500
Oil capacity	4 qts 3.8 L
Coolant capacity	8.5 qts 8.0 L

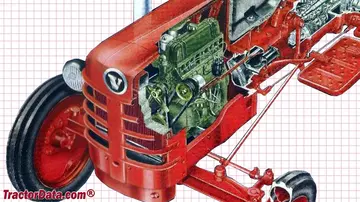

Volvo T15 Engine

Transmission

Transmission — 4 forward and 1 reverse gear

Type	gear
Gears	4 forward and 1 reverse

Dimensions

Volvo T15 Tires
Ag front	4.00-19
Ag rear	10-28

Dimensions
Wheelbase	75.4 inches 191 cm
Length	116.9 inches 296 cm
Width	66.9 inches 169 cm
Weight	2976 lbs 1349 kg
Clearance (front axle)	17.7 inches 44 cm
Clearance (rear axle)	15.4 inches 39 cm
Front tread	48.8/57.1 inches 123/145 cm
Rear tread	52.8 to 76.4 inches 134 to 194 cm

Volvo T15 Height
Steering wheel	52.8 inches 134 cm
Hood	49.2 inches 124 cm
Exhaust	77.2 inches 196 cm

Photos

Volvo T15 Krabat

Volvo T15 Krabat

Volvo T15 Krabat

Volvo T15 Krabat

Volvo Karbat T15 operator station and controls.
