Volvo T425 Krabat

The Volvo T425 Krabat is a tractor produced by Volvo. It is equipped with a 97.6 ci 1.6 L engine. The listed engine power is Gasoline (listed): 32 hp / 23.9 kW. Transmission: 4 forward and 1 reverse. Operating weight: 2976 lbs 1349 kg.

Engine Power

Gasoline (listed): 32 hp / 23.9 kW

Fuel & Capacities

10.6 gal 40.1 L

Transmission

4 forward and 1 reverse

Operating Weight

2976 lbs 1349 kg

Overview

	1957 - 1962 Utility tractor

Production
Manufacturer	Volvo
Utility tractor
Total built	11193

Volvo T425 Engine
Volvo 1.6L 4-cyl gasoline
Fuel tank	10.6 gal 40.1 L
Engine details ...

Volvo T425 Transmission
4-speed gear
Transmission details ...

Volvo T425 Power
Engine	32 hp 23.9 kW
PTO (claimed)	25 hp 18.6 kW

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Hydraulics
Pump flow	6.3 gpm 23.8 lpm

Tractor hitch
Rear lift	1764 lbs 800 kg

Power Take-off (PTO)
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	75.4 inches 191 cm
Weight	2976 lbs 1349 kg
Front tire	4.00-19
Rear tire	10-28
Full dimensions and tires ...

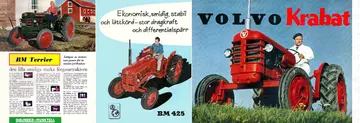

References

BM 425 published in 1957, by Bolinder-Munktell
BM 425 published in 1958, by Bolinder-Munktell
Krabat published in 1956, by Volvo

Engine

Engine Detail — 97.6 ci / 1.6 L Gasoline

Manufacturer	Volvo B16C
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
A foot accelerator pedal allowed increasing engine speed to 2500 RPM for road travel.
Displacement	97.6 ci 1.6 L
Bore/Stroke	3.12x3.15 inches 79 x 80 mm
Power	32 hp 23.9 kW
Rated RPM	2000
Starter volts	6
Oil capacity	4 qts 3.8 L
Coolant capacity	8.5 qts 8.0 L

Transmission

Transmission — 4 forward and 1 reverse gear

Type	gear
Gears	4 forward and 1 reverse
Clutch	228.6mm dry disc

Dimensions

Volvo T425 Tires
Ag front	4.00-19
Ag rear	10-28

Dimensions
Wheelbase	75.4 inches 191 cm
Length	116.9 inches 296 cm
Width	66.9 inches 169 cm
Height (hood)	49.2 inches 124 cm
Height (exhaust)	77.2 inches 196 cm
Weight	2976 lbs 1349 kg
Clearance (front axle)	17.7 inches 44 cm
Clearance (rear axle)	15.4 inches 39 cm
Front tread	47.2/55.5 inches 119/140 cm
Rear tread	52.8 to 76.4 inches 134 to 194 cm

Photos

Volvo T425 Krabat

Recommended Implements & Sizing Guide

Engineering recommendations for Volvo T425 Krabat based on its 32 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Volvo T425 Krabat.

Estimated Continuous Field Runtime: 6.4 hrs

Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).

Estimated 75% Load Fuel Burn~1.7 gal/hr (6.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
