Volvo T430

The Volvo T430 is a tractor produced by Volvo. It is equipped with a 152.55 ci 2.5 L engine. The rated power output is 42.5 hp 31.7 kW. Transmission: TracTrol. Operating weight: 5291 lbs*Weight with cab. 2399 kg.

Overview

	1969 - 1978 Utility tractor
1969 - 1978
Utility tractor

Production
Manufacturer	Volvo
Utility tractor
Total built	23764

Volvo T430 Engine
Perkins 2.5L 3-cyl diesel
Fuel tank	11.9 gal 45.0 L
Engine details ...

Volvo T430 Power
Engine	42.5 hp 31.7 kW

Mechanical
Two-wheel drive
Steering	mechanical
Open operator station. Cab optional.

Hydraulics
Pump flow	8.7 gpm 32.9 lpm

Tractor hitch
Rear lift	2756 lbs 1250 kg

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	540@1770

Dimensions & Tires
Wheelbase	82.7 inches 210 cm
Weight	5291 lbs 2399 kg
Front tire	7.50-16
Rear tire	13.6-36
Full dimensions and tires ...

References
Volvo BM T430 published in 1976

Engine

Engine Detail — 152.55 ci / 2.5 L Diesel

Manufacturer	Perkins
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	152.55 ci 2.5 L
Bore/Stroke	3.60x5.00 inches 91 x 127 mm
Power	42.5 hp 31.7 kW
Compression	18:1
Rated RPM	2250
Torque	123.2 lb-ft 167.1 Nm
Torque RPM	1350
Starter volts	12

Transmission

Transmission options
8-speed gear
16-speed two-speed power shift

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
With 13.6-36 rear tires.

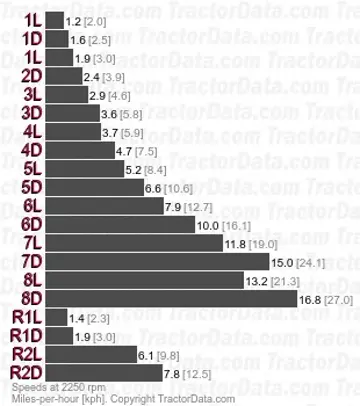

Transmission — TracTrol

Transmission	TracTrol
Type	two-speed power shift
Gears	16 forward and 4 reverse
With 13.6-36 rear tires.

Dimensions

Volvo T430 Tires
Ag front	7.50-16
Ag rear	13.6-36
Ag rear	12.4-36

Dimensions
Wheelbase	82.7 inches 210 cm
Length	129.9 inches 329 cm
Width	69.7 inches 177 cm
Height	92.1 inches 233 cm
Weight	5291 lbs*Weight with cab. 2399 kg
Front tread	48/54.7 inches 121/138 cm
Rear tread	53.5 to 69.7 inches 135 to 177 cm

Photos

Volvo T430

Volvo T430
