Volvo T700
The Volvo T700 is a tractor produced by Volvo. It is equipped with a 256.3 ci 4.2 L engine. The listed engine power is Diesel (listed): 90 hp / 67.1 kW. Transmission: TracTrol. Operating weight: 9040 lbs 4100 kg.
Engine Power
Diesel (listed): 90 hp / 67.1 kW
Fuel & Capacities
25.1 gal
95.0 L
Transmission
TracTrol
Operating Weight
9040 lbs
4100 kg
Overview
 | 1976 - 1982 |
|---|
Production | |
|---|---|
Manufacturer | Volvo |
Volvo T700 Engine | |
|---|---|
Volvo 4.2L 4-cyl diesel | |
Fuel tank | 25.1 gal
95.0 L |
Engine details ...  | |
Volvo T700 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
Volvo T700 Power | |
|---|---|
Engine | 90 hp
67.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Cab standard. |
Hydraulics | |
|---|---|
Pump flow | 9.5 gpm
36.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 6063 lbs
2750 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1780 |
Dimensions & Tires | |
|---|---|
Wheelbase | 96.1 inches
244 cm |
Weight | 9040 lbs
4100 kg |
Front tire | 10.00-16 |
Rear tire | 14.9-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Volvo BM 700 published in 1980 |
Engine
Engine Detail — 256.3 ci / 4.2 L Diesel
Manufacturer | Volvo TD42 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 256.3 ci
4.2 L |
Bore/Stroke | 4.1575x4.7244 inches
106 x 120 mm |
Power | 90 hp
67.1 kW |
Rated RPM | 2300 |
Torque | 236.0 lb-ft
320.0 Nm |
Torque RPM | 1600 |
Starter volts | 12 |
Volvo T700 Engine | |
|---|---|
 |

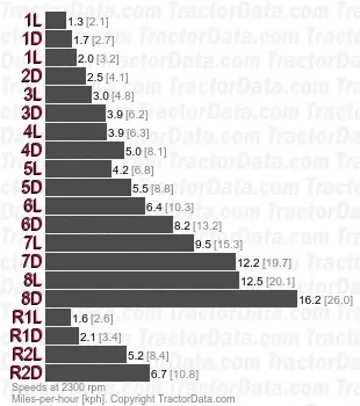

Transmission
Transmission — TracTrol
Transmission | TracTrol |
Type | two-speed power shift |
Gears | 16 forward and 4 reverse |
With 18.4-38 rear tires. | |
 | |
Dimensions
Volvo T700 Tires | |
|---|---|
Ag front | 10.00-16 |
Ag rear | 14.9-38 |
Ag front | 7.50-18 |
Ag rear | 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 96.1 inches
244 cm |
Length | 144.9 inches
368 cm |
Width | 87.4 inches
221 cm |
Height | 104.3 inches
264 cm |
Weight | 9040 lbs
4100 kg |
Clearance (front axle) | 18.9 inches
48 cm |
Clearance (rear axle) | 15.4 inches
39 cm |
Front tread | 57.7 inches
146 cm |
Rear tread | 57.5 to 76.8 inches
146 to 195 cm |
Photos
Volvo T700 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Volvo T700 based on its 90 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Volvo T700.
Estimated Continuous Field Runtime: 5.4 hrs
Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (25.1 gal / 95 L).
Estimated 75% Load Fuel Burn~4.7 gal/hr (17.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Volvo T700 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Volvo T700.
Converted Equivalents:
Horsepower (HP)90 hp
Kilowatts (kW)67.1 kW
Metric Horsepower (PS / CV)91.2 PS
Direct Competitor Comparison
Compare Volvo T700 against same-era industry alternatives in the same horsepower class.
Current Model
Volvo
Volvo T700
Engine Power:Diesel (listed): 90 hp / 67.1 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 884
Engine Power:81
Production Years:1979 - 1984
