Waltanna 4-380
The Waltanna 4-380 is a tractor produced by Waltanna. It is equipped with a 893 ci 14.6 L engine. The listed engine power is Diesel (listed): 380 hp / 283.4 kW. Transmission: Spicer. Operating weight: 40124 lbs 18200 kg.
Engine Power
Diesel (listed): 380 hp / 283.4 kW
Fuel & Capacities
499 gal
1888.7 L
Transmission
Spicer
Operating Weight
40124 lbs
18200 kg
Overview
 | 1980 - 1981
4 SeriesFour-wheel Drive (4WD) tractor
4 Series
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Waltanna |
Four-wheel Drive (4WD) tractor | |
Built in Tarrington, Victoria, Australia | |
Waltanna 4-380 Engine | |
|---|---|
Caterpillar 14.6L 6-cyl diesel | |
Engine details ...  |
Waltanna 4-380 Transmission | |
|---|---|
14-speed gear | |
Transmission details ...  |
Waltanna 4-380 Power | |
|---|---|
Engine | 380 hp
283.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Articulated power steering | |
Cab standard with air-conditioning. |
Capacity | |
|---|---|
Fuel | 499 gal
1888.7 L |
Hydraulic system | 41.7 gal
157.8 L |
Hydraulics | |
|---|---|
Capacity | 41.7 gal
157.8 L |
Dimensions & Tires | |
|---|---|
Weight | 40124 lbs
18200 kg |
Front tire | 23.1x34 |
Rear tire | 23.1x34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 893 ci / 14.6 L Diesel
Manufacturer | Caterpillar 3406 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 893 ci
14.6 L |
Bore/Stroke | 5.40x6.50 inches
137 x 165 mm |
Power | 380 hp
283.4 kW |
Rated RPM | 2100 |
Operating RPM | 1300-2100 |
Torque | 1080 lb-ft
1464.5 Nm |
Torque RPM | 1400 |
Starter type | electric |
Transmission
Transmission — Spicer
Transmission | Spicer |
Type | gear |

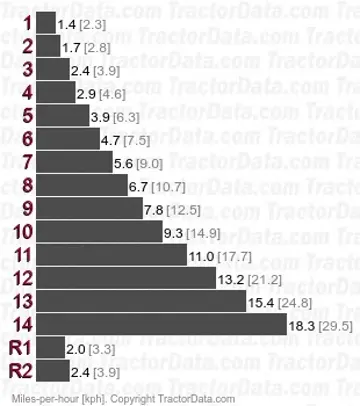

Gears | 14 forward and 2 reverse |
With 23.1x34 tires. | |
 | |
Dimensions
Waltanna 4-380 Tires | |
|---|---|
Ag front | 23.1x34 |
Ag rear | 23.1x34 |
Dimensions | |
|---|---|
Length | 239.4 inches
608 cm |
Width | 165.4 inches
420 cm |
Height (exhaust) | 128 inches
325 cm |
Weight | 40124 lbs
18200 kg |
Front tread | 105.1 inches
266 cm |
Rear tread | 105.1 inches
266 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Waltanna 4-380 based on its 380 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Waltanna 4-380.
Estimated Continuous Field Runtime: 25.3 hrs
Approximately 25.3 hours of continuous field operation at ~75% rated power on a full tank (499 gal / 1888.9 L).
Estimated 75% Load Fuel Burn~19.8 gal/hr (74.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Waltanna 4-380 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Waltanna 4-380.
Converted Equivalents:
Horsepower (HP)380 hp
Kilowatts (kW)283.4 kW
Metric Horsepower (PS / CV)385.3 PS
Direct Competitor Comparison
Compare Waltanna 4-380 against same-era industry alternatives in the same horsepower class.
Current Model
Waltanna
Waltanna 4-380
Engine Power:Diesel (listed): 380 hp / 283.4 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 4786
Engine Power:350
Production Years:1978 - 1981
