Waterloo Boy P
The Waterloo Boy P is a tractor produced by Waterloo Boy. Transmission: 1 forward and reverse. Drive type: half-track.
Drive & Traction
half-track
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Overview
 | 1913
Half-track Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | Waterloo Boy |
Half-track Crawler tractor | |
Built in Waterloo, Iowa, USA | |
Records on this model are incomplete. Advertisements of the era show "Sure Grip, Never Slip" written on the cooling tower, and some have assumed this to the model name. The model P designation is suggested in the January/February 1995 issue of Two-Cylinder Magazine. The tractor would appear to have been based on the unsuccessful Parkhurst-designed Waterloo Boy Standard tractor. | |
Waterloo Boy P Engine | |
|---|---|
Waterloo Gasoline Engine Company 4-cyl gasoline | |
Engine details ...  |
Waterloo Boy P Transmission | |
|---|---|
1-speed unsynchronized gear | |
Transmission details ...  |
Waterloo Boy P Power | |
|---|---|
Plows | 4-5 (14-inch) |
Mechanical | |
|---|---|
Drive | half-track |
Steering | manual |
Dimensions & Tires | |
|---|---|
Rear tire | tracks |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Waterloo Gasoline Engine Company |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Transmission
Transmission — 1 forward and reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 1 forward and reverse |
Dimensions
Waterloo Boy P Tires | |
|---|---|
Ag rear | tracks |
Dimensions |
|---|
Photos

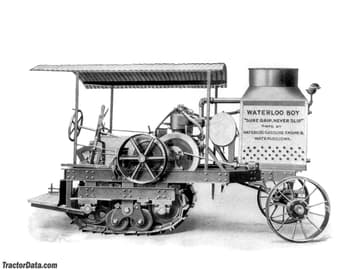

Waterloo Boy P
Waterloo Boy P Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Waterloo Boy P.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
