White 1370
The White 1370 is a tractor produced by White. It is equipped with a 210.9 ci 3.5 L engine. Transmission: 12 forward and 3 reverse. Operating weight: 4410 to 4940 pounds.
Fuel & Capacities
14.25 gal
53.9 L
Transmission
12 forward and 3 reverse
Operating Weight
4410 to 4940 pounds
Overview
 | 1973 - 1976
Utility tractor |
|---|
Note: the White model 1370 is the same as the Oliver 1365. The following data is from the 1365 listing. |
|---|
Production | |
|---|---|
Manufacturer | White |
Utility tractor | |
Original price was $9,000 in 1975 | |
White 1370 Engine | |
|---|---|
Fiat 3.5L 4-cyl diesel | |
Engine details ...  |
White 1370 Power | |
|---|---|
PTO (claimed) | 55 hp
41.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Mechanical band brakes | |
Open operator station. | |
Capacity | |
|---|---|
Fuel | 14.25 gal
53.9 L |
Hydraulic system | 4.5 gal
17.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 4.5 gal
17.0 L |
Pressure | 2133 psi
147.1 bar |
Pump flow | 5.76 gpm
21.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift | 3100 lbs
1406 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Wheelbase | 80.8 inches
205 cm |
Weight | 4410 to 4940 pounds |
Front tire | 7.50-16 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 42 |
Battery volts | 12 |
References | |
|---|---|
 | |
Cockshutt Utility Tractors published in 1973, by White |
Engine
Note: the White model 1370 is the same as the Oliver 1365. The following data is from the 1365 listing. |
|---|
Engine Detail — 210.9 ci / 3.5 L Diesel
Manufacturer | Fiat |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 210.9 ci
3.5 L |
Bore/Stroke | 3.94x4.33 inches
100 x 110 mm |
Air cleaner | oil bath |
Pre-heating | thermostart |
Compression | 17:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 12 qts
11.4 L |
Coolant capacity | 14 qts
13.2 L |
Transmission
Note: the White model 1370 is the same as the Oliver 1365. The following data is from the 1365 listing. |
|---|
Transmission options | |
|---|---|
8-speed partially synchronized | |
12-speed creeper |
Transmission — 8 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and 2 reverse |
Oil capacity | 19 qts
18.0 L |
Synchronized shifts between gears 3-4 and 7-8. | |
With 16.9-30 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 12 forward and 3 reverse |
 | |
Dimensions
Note: the White model 1370 is the same as the Oliver 1365. The following data is from the 1365 listing. |
|---|
White 1370 Tires | |
|---|---|
2WD Ag front | 7.50-16 |
4WD Ag front | 9.50x24 |
2WD Ag rear | 16.9-30 |
4WD Ag rear | 16.9-30 |
2WD Ag front | 6.00x16 |
2WD Ag rear | 14.9-28 |
2WD Ag rear | 14.9-30 |
Dimensions | |
|---|---|
Wheelbase | 80.8 inches
205 cm |
Utility Length | 122 inches
309 cm |
Row-crop Length | 125 inches
317 cm |
4WD Length | 127 inches
322 cm |
Utility Width | 70 inches
177 cm |
Row-crop Width | 72 inches
182 cm |
4WD Width | 72 inches
182 cm |
Utility Clearance (front axle) | 18.9 inches
48 cm |
Row-crop Clearance (front axle) | 25.75 inches
65 cm |
4WD Clearance (front axle) | 11 inches
27 cm |
2WD Front tread | 52 to 79.5 inches
132 to 201 cm |
4WD Front tread | 55/59 inches
139/149 cm |
Rear tread | 55.1 to 78.75 inches
139 to 200 cm |
White 1370 Weight | |
|---|---|
Utility Shipping | 4410 lbs
2000 kg |
Row-crop Shipping | 4550 lbs
2063 kg |
4WD Shipping | 4940 lbs
2240 kg |
White 1370 Height | |
|---|---|
Utility Steering wheel | 60.6 inches
153 cm |
Row-crop Steering wheel | 67.5 inches
171 cm |
4WD Steering wheel | 63.25 inches
160 cm |
Attachments
Note: the White model 1370 is the same as the Oliver 1365. The following data is from the 1365 listing. |
|---|
Attachment overview | |
|---|---|
Cockshutt 1522 loader | |
Cockshutt 1524 loader |
Photos

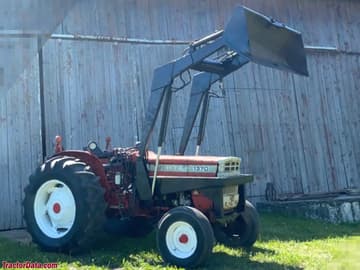

White 1370
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for White 1370.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
White 1370 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for White 1370.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
