White 6710
The White 6710 is a tractor produced by White. It is equipped with a 359 ci 5.9 L engine. The listed engine power is 95.62 hp 71.3 kW. Transmission: Quadrashift. Operating weight: 10400 to 11300 pounds.
Engine Power
95.62 hp
71.3 kW
Fuel & Capacities
42 gal
159.0 L
Transmission
Quadrashift
Operating Weight
10400 to 11300 pounds
Overview
 | 1998 - 2001
6010 SeriesUtility tractor
6010 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | White (a part of AGCO) |
Utility tractor | |
Original price was $45,000 in 1999 | |
Variants | |
|---|---|
8775 | similar AGCO Allis model |
White 6710 Engine | |
|---|---|
Cummins 5.9L 6-cyl diesel | |
Fuel tank | 42 gal
159.0 L |
Engine details ...  | |
White 6710 Transmission | |
|---|---|
32-speed four-speed power shift | |
Transmission details ...  |
White 6710 Power | |
|---|---|
PTO (claimed) | 95 hp
70.8 kW |
PTO (tested) | 101.99 hp
76.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | inboard planetary |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Two-post ROPS. Cab optional with air-conditioning. FieldStar ready | |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2900 psi
200.0 bar |
Valves | 2 |
Pump flow | 29 gpm
109.8 lpm |
SCV flow | 27.7 gpm
104.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 7000 lbs
3175 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 540/540E/1000/1000E |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.6 inches
286 cm |
Weight | 10400 to 11300 pounds |
Front tire | 11.00-16 |
Rear tire | 16.9R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
White Loaders published in 1999, by AGCO | |
6410 - 6510 - 6710 - 6810 published by AGCO | |
6010 Series published in 1998, by AGCO |
Engine
Engine Detail — 359 ci / 5.9 L Diesel
Manufacturer | Cummins B5.9T |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 359 ci
5.9 L |
Bore/Stroke | 4.016x4.724 inches
102 x 120 mm |
Air cleaner | dry elements |
Compression | 17:1 |
Rated RPM | 2200 |
Starter volts | 12 |
White 6710 Engine | |
|---|---|
 |

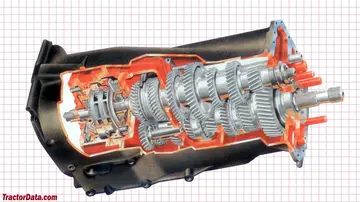

Transmission
Transmission — Quadrashift
Transmission | Quadrashift |
Type | four-speed power shift |
Gears | 32 forward and reverse |
Clutch | wet disc |
Four power shift gears in eight synchronized ranges with synchronized shuttle. | |
White 6710 Transmission | |
|---|---|
 |
Dimensions
White 6710 Tires | |
|---|---|
Ag front | 11.00-16 |
Ag rear | 16.9R38 |
Dimensions | |
|---|---|
Wheelbase | 112.6 inches
286 cm |
Length | 173 inches
439 cm |
Width | 88 inches*Minimum width
223 cm |
Height (cab) | 109 inches
276 cm |
Flange rear axle | |
White 6710 Weight | |
|---|---|
4WD ROPS Shipping | 10400 lbs
4717 kg |
4WD Cab Shipping | 11300 lbs
5125 kg |
4WD Cab Operating | 11,115 lbs
5041 kg |
Tests
Nebraska Tractor Test 1763 | |
|---|---|
Diesel 32-speed 4WD
September 16 - 23, 1999
Link: Nebraska Tractor Test 1763 file | |
PTO performance | |
Max power | 101.99 hp
76.1 kW |
Power at rated engine speed | 95.62 hp
71.3 kW |
Fuel use | 6.1 gal/hour
23.1 l/hour |
Power at rated PTO speed | 100.18 hp
74.7 kW |
Fuel use | 5.9 gal/hour
22.3 l/hour |
Attachments
Attachment overview | |
|---|---|
White 688 loader | |
White 688 SL loader |
Photos
White 6710 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for White 6710 based on its 95.62 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for White 6710.
Estimated Continuous Field Runtime: 8.4 hrs
Approximately 8.4 hours of continuous field operation at ~75% rated power on a full tank (42 gal / 159 L).
Estimated 75% Load Fuel Burn~5 gal/hr (18.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
White 6710 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for White 6710.
Converted Equivalents:
Horsepower (HP)95.6 hp
Kilowatts (kW)71.3 kW
Metric Horsepower (PS / CV)96.9 PS
Direct Competitor Comparison
Compare White 6710 against same-era industry alternatives in the same horsepower class.
Current Model
White
White 6710
Engine Power:95.62 hp
71.3 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 844-S
Engine Power:87
Production Years:1975 - 1989
