White 2-180

The White 2-180 is a tractor produced by White. It is equipped with a 636 ci 10.4 L engine. The rated power output is 210 hp 156.6 kW. Transmission: 3x6 Over/Under. Operating weight: 16000 to 18280 pounds.

Overview

	1977 - 1987 Field Boss SeriesRow-Crop tractor
1977 - 1987
Field Boss Series
Row-Crop tractor

Production
Manufacturer	White
Row-Crop tractor
Original price was $55,200 in 1982

White 2-180 Engine
Caterpillar 10.4L 8-cyl diesel
Fuel tank	74 gal 280.1 L
Engine details ...

White 2-180 Transmission
18-speed partial powershift
Transmission details ...

White 2-180 Power
Engine	210 hp 156.6 kW
PTO (claimed)	180 hp 134.2 kW
Drawbar (tested)	158.97 hp 118.5 kW
PTO (tested)	181.89 hp 135.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
Cab standard with air-conditioning. Optional radio, cassette, and 8-track.

Hydraulics
Type	closed center
Valves	2
Pump flow	22 gpm 83.3 lpm

Tractor hitch
Rear Type	III

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	112 inches 284 cm
Weight	16000 to 18280 pounds
Front tire	14L-16
Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Batteries	2
Battery volts	12

References
1978 Farm Equipment Line published by White
1979 Farm Equipment Line published by White
Field Boss Tractors published in 1983, by White

Engine

Engine Detail — 636 ci / 10.4 L Diesel

Manufacturer	Caterpillar 3208
Fuel Type	Diesel
Configuration	8-cylinder, liquid-cooled
Displacement	636 ci 10.4 L
Bore/Stroke	4.50x5.00 inches 114 x 127 mm
Power	210 hp 156.6 kW
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2800
Starter volts	12
Coolant capacity	46.5 qts 44.0 L

Transmission

Transmission — 3x6 Over/Under

Transmission	3x6 Over/Under
Type	partial powershift
Gears	18 forward and 6 reverse
Clutch	dry disc
Six forward and two reverse gears with an over and under powershift for each gear.

Dimensions

White 2-180 Tires
Ag front	14L-16
Ag rear	20.8-38

Dimensions
Wheelbase	112 inches 284 cm
Shipping weight	16000 lbs 7257 kg
Operating weight	18280 lbs*Two-wheel drive tractor with 20.8-42 rear duals and no ballast. 8291 kg

Tests

Nebraska Tractor Test 1287
Diesel 18-speed 2WD September 15 - 23, 1978 Link: Nebraska Tractor Test 1287 file
PTO performance
Power at rated engine speed	181.89 hp 135.6 kW
Fuel use	12.6 gal/hour 47.7 l/hour
Drawbar performance
Max power	158.97 hp 118.5 kW
Fuel use	12.4 gal/hour 46.9 l/hour
Gear 4-direct used for power test.
Max pull	15499 lbs 7030 kg
Gear 2-direct used for pull test.

Photos

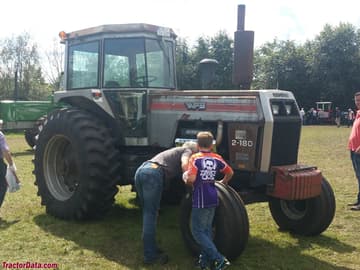

Two-wheel drive White 2-180.

Two-wheel drive White 2-180.

Four-wheel drive White 2-180.

Four-wheel drive White 2-180.

Four-wheel drive White 2-180.

Four-wheel drive White 2-180.
